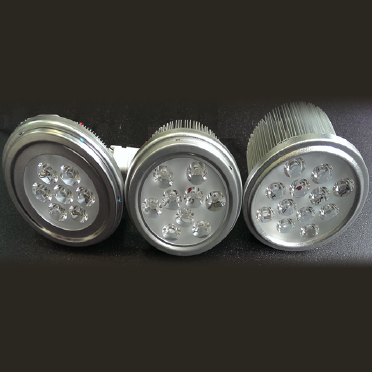

LED AR111 light source

• High brightness, suitable for various luminaires, easy to install.
• Excellent spotlight effect, theme emphasis lighting.
• Wide commercial application on a variety of luminaires.
• Suitable for commercial space and residential environment.

Product Description

Other Product Description

LED AR111 light source(1)

LED AR111 light source(2)

LED AR111 light source(3)

Technical specification

Detailed related technical specifications.

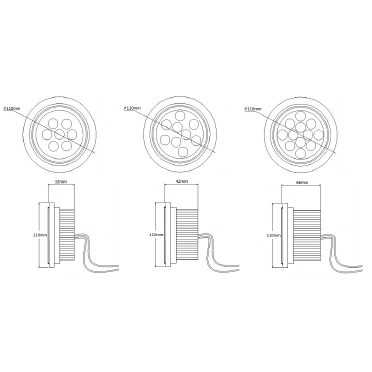

Dimension (±1mm)	Power (W)	Color temperature (K)	Luminous flux (lm)	Beam angle	CRI	Input voltage[V]	PF	Material
110mm*66mm	15W±10%	3000K±200K	1200lm±10%	30D	>70	100V～240V 50/60Hz	0.6±10%	Aluminum alloy
		6000K±200K	1280lm±10%
110mm*42mm	12W±10%	3000K±200K	960lm±10%
		6000K±200K	1050lm±10%
110mm*32mm	9W±10%	3000K±200K	760lm±10%
		6000K±200K	800lm±10%
