Semiconductor Cleanroom Yellow LED Tube light

• Special light filtering PC cover that can effectively remove the lights with wavelength below 530 (nm) and blue light.
• PC optical cover reduces glare.
• Meeting the radiation safety standard for fluorescence.
• Featuring double-ended power and replacement for yellow fluorescent tube.
• Application:lithography process,PCB production and related semiconductor manufacturing cleanroom as well. Anyplace where is UV sensitive and blocking areas.
• Highly reliable Taiwan-made products that pass the aging test.

Product Description

Other Product Description

Semiconductor Cleanroom Yellow LED Tube light

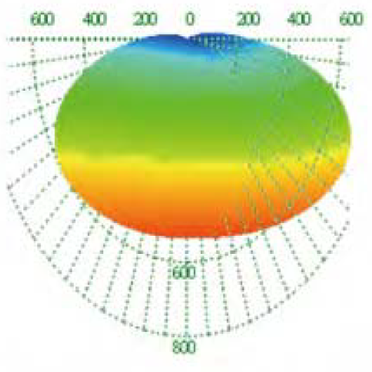

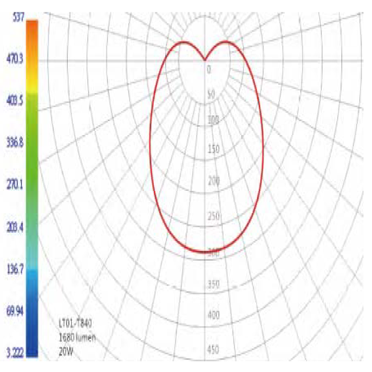

Spotlight type

Light decay test

Technical specification

Detailed related technical specifications.

Model No.	Unit	T8-4 Inch cleanroom exclusive yellow LED tube light	T8-2 Inch cleanroom exclusive yellow LED tube light
		Double-ended power
Length	mm	1198(not including pin)	580(not including pin)
Wattage	W	20W/18W	10W
Wattage		Taiwan Everlight chip SMD
Input voltage	VAC	120~277 & 100~240
Frequency	Hz	50/60
Power factor(110VAC)		>0.95
Power supply efficiency	%	>85
Color temperature	K	2200±200
Main body material	Lux	6063 aluminum alloy with anodizing surface treatment
Cover material		Yellow light filtering particle PC cover
Component overheat protection mechanism		Activation over 90°C
Output current protection mechanism		330mA (activation at 110%)
Power surge protection mechanism		930VAC 20μs
Storage temperature	﹣40~60,﹤70% RH
Working temperature	﹣25~40,﹤70% RH
Made in Taiwan and verified by SGS Taiwan
