High brightness LED recessed light

• Embedded power supply, easy installation and replacement, stable circuitry.
• 100–277 VAC wide input voltage design.
• UV-free, meeting RoHS standard.
• All-in-one passive heat dissipation that is free of thermal bridging.
• Suitable for indoor lighting, such as hallway, office and family.

Product Description

Other Product Description

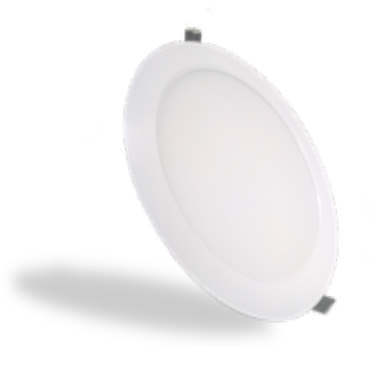

High brightness LED recessed light(1)

High brightness LED recessed light(2)

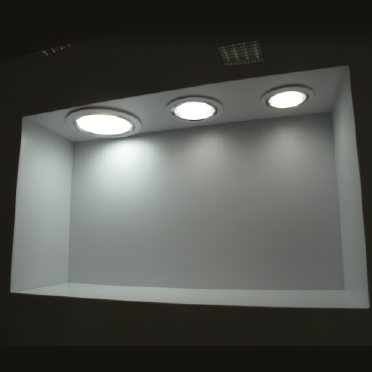

Installation environment

Technical specification

Detailed related technical specifications.

Size	12W 5”(convex)	16W 5”(thin)
Power	12W ± 10%	16W ± 10%
Outside diameter mm	180x45mm	180x30mm
Inside diameter mm	145~150mm	145~150mm
Color rendering	> 80	> 80
Luminous flux (Im)	≧750 Lm	≧1200 Lm
Color temperature	5700K/3000K
Working voltage	100–277VAC
Working temperature	-20°C–50°C (indoor use)
