LED lighting series
Free onsite assessment, energy saving solution and customization service. 【TEL】+886-7-815-9877#1401、1402E-Mali

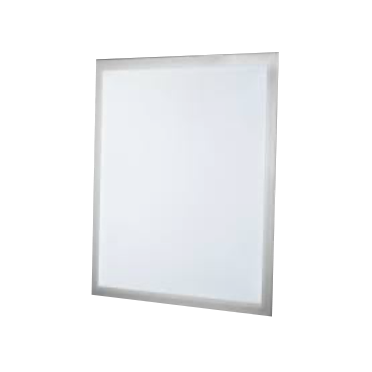

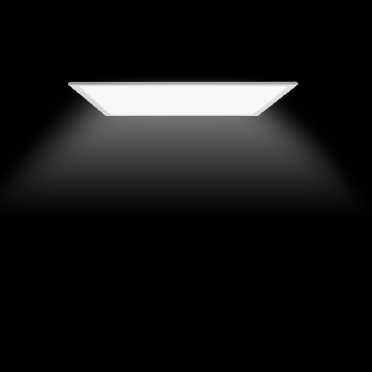

Ultra-slim high efficiency LED panel light
- Ultra-slim, high brightness, full-range light source, soft and elegant lighting.
- Paired with specialized power supply offering quick start without flickering.
- Mercury-free with no mercury contamination factor.
- Full visible spectrum and ultraviolet-free.
- Suitable for office t-bar with easy and quick installation.
Product Description
Other Product Description
Ultra-slim highly effective panel light(1)
Ultra-slim highly effective panel light(2)
Ultra-slim highly effective panel light(3)
Technical specification
Detailed related technical specifications.
| Model Name | Ultra-slim high efficiency LED panel light | |
|---|---|---|
| Power consumption (W) | 25W | 40W |
| Input voltage (V) | 100~240 V | |
| Power frequency (Hz) | 50/60 Hz | |
| Power factor (PF) | >0.9 | |
| Luminous flux (Im) | > 3000 LM | > 4000 LM |
| Color temperature (k) | 3000K / 4000K / 6000K | |
| Light source | LED 2835 | |
| Color rendering CRI | > RA 80 | |
| Beam Angle θ/2 | 110° | |
| Working Temperature & Humidity | -10℃~40℃,10%~60% R.H. | |
| Dimension(mm) | 600mm*600mm*68mm | |
