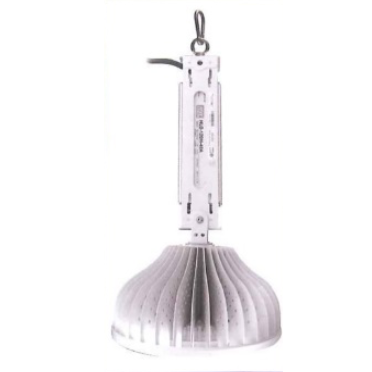

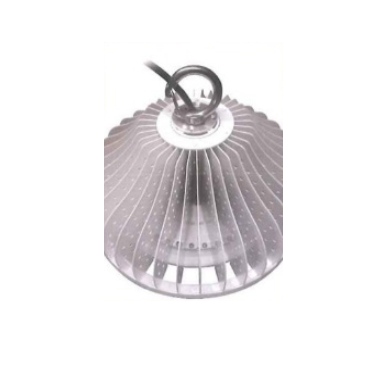

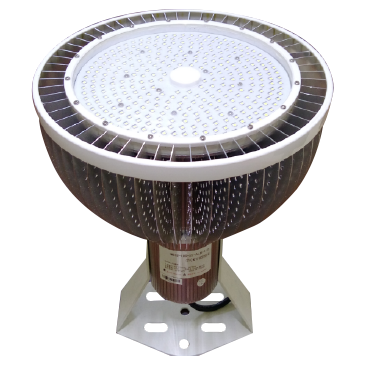

LED high bay light

• Heat dissipation material with aluminum anodizing treatment.
• Surface, external and body of the panel are sealed with thermal pad.
• Dual silicone/rubber seal waterproof design.
• Suitable for high ceiling factories.
• Waterproof model can be used for outdoor projection.

Product Description

Other Product Description

LED high bay light(1)

LED high bay light(2)

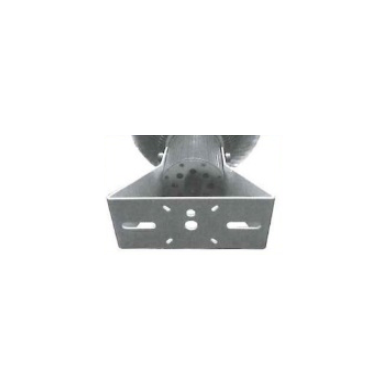

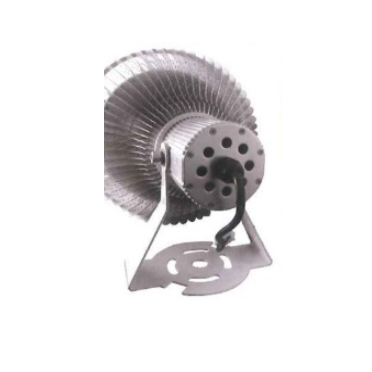

LED high bay light-multiple tripods(1)

LED high bay light-multiple tripods(2)

LED high bay light-multiple tripods(3)

LED high bay light-multiple tripods(4)

Technical specification

Detailed related technical specifications.

Luminaire technical specification	100W	120W	180W	240W
Crystallite	Japanese Nichia chips
Control chip	Mean Well
Power supply	Mean Well power series
Lamp holder light box	Heat dissipation material with aluminum anodizing treatment/surface, external and body of the panel are sealed with thermal pad/Dual silicone/rubber seal waterproof design
Power (w)	100W±10%	120W±10%	180W±10%	240W±10%
Luminous Efficacy 1m/w	120
Luminous flux 1m	12000lm±7%	14400lm±7%	26000lm±7%	32000lm±7%
1m minimum illuminance 1ux	3400	4200	5200	6900
Color temperature °K	5000K±500K
Color rendering index Ra	80
Service life hr	40000
9000 hr light decay rate	< 10%
Beam angle	140
Angle of half luminous flux	110
Input voltage VAC	100~277
Power supply international protection marking IP	IP65
