FPC UV Laser Cutting Machine
FPC UV Laser Cutting Machine

LS-355-600 & LS-355-400

  • FPC or Rigid-Flex PCB contour cutting.
  • - Saving the time and cost of developing molds.
  • - Easy to operate by simply inputting cdd files.
  • - Applicable to abnormal shapes cutting.
  • - Applicable to products with strict size requirement.
  • - Improving overall production yield.
  • 【Application areas】 Customizable for SMT, FPC, PCB and optoelectronic industries.
  • 【Product number】 LS-355-600 & LS-355-400。

Product processing instruction

Other Product Description

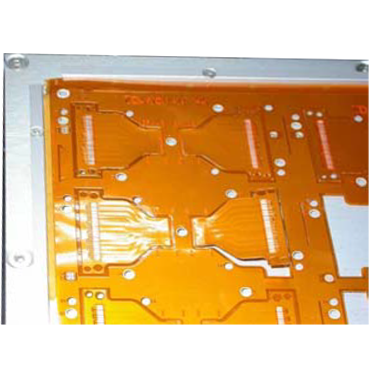

FPC final product cutting FPC final product cutting

Technical specification

Detailed related technical specifications.

LS2-355-600 Dual-stage FPC cutting machine
Applicable Products 軟性電路板、PI 及銅類等材質皆可切割
Laser Information Laser type: UV Nd: YVO4 Laser
Laser wavelength: 355nm
Laser Power: 12W (customizable)
Frequency: 20KHz–200KHz
Cooling method: water
Laser machining type: high speed head guide
Features Maximum lead 600mm × 600mm (Customizable)
Maximum machining speed 3000 mm/sec
Maximum machining speed 3000 mm/sec Dual-table stage, significantly reducing loading and unloading time. Reloading and cutting can be done simultaneously.
Capable of executing multiple cutting jobs in the same mode.
Simultaneous motion of X and Y axes
Honeycomb vacuum chuck stage
Automatic focus
Automatic focus adjustment based on stage level
Rapid cutting on anchor points and image-navigated cutting (automatic angle calculation)
Tolerance for cutting < 25um
Laser power measurement
Software Information Self-developed Chinese user interface.
Mark point navigation CCD (16 different types of target navigation)
3 target types (round, polygon, specific shape)
CCD & Laser offset calculation
Capable of marking any words, images, 1D & 2D barcode, serial number, etc.
Parameter recording
Capable of processing up to four layers cutting
Starting point recording
Cutting time recording
