PCB Industry / FPC fast drilling and cutting machine

FPC軟板快速鑽孔切割機
FPC fast drilling and cutting machine

Design, R&D, manufacturing, and autonomous technology by Taiwanese team

  • - Perfect multitasking professional production model.
  • - Outstanding machining performance at 1200 holds per second.
  • - Cost-efficient model suitable for high-speed drilling and high-speed cutting.
  • - Serial number marking to achieve multitasking.
  • - Unique industry-leading patented optical path design.
  • - User-friendly interface.
  • - User-friendly interface.
  • - Stable power compensation technology.
  • - Automatic object height sensor.
  • - R&D and manufacturing by local team with autonomous technology.
  • 【Application】 Innovative patented optical path design suitable for high-speed drilling, high-speed cutting and serial number marking, achieving multitasking.

Product processing instruction

Other Product Description

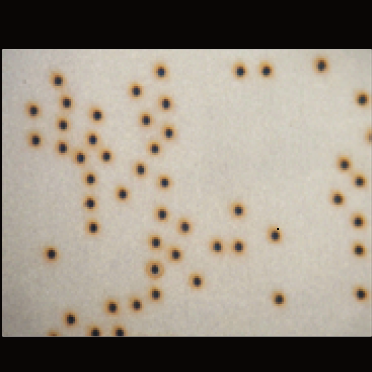

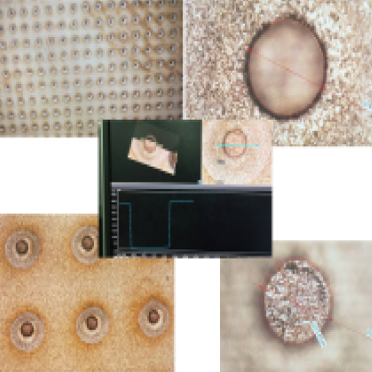

Copper clad laminate through hole Copper clad laminate through hole

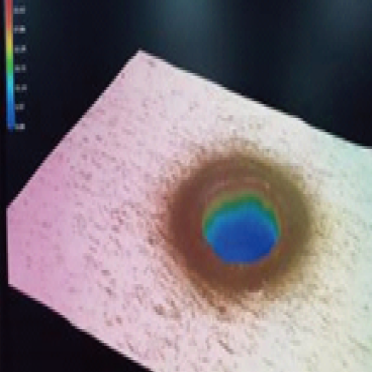

Copper clad laminate blind via hole Copper clad laminate blind via hole

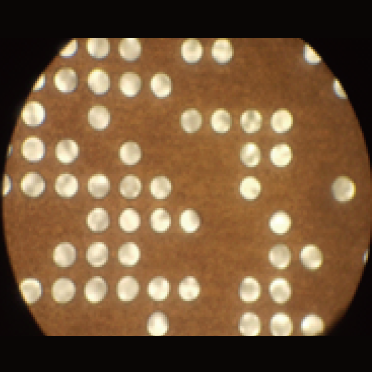

2D Barcode marking 2D Barcode marking
2D Barcode marking 2D Barcode marking

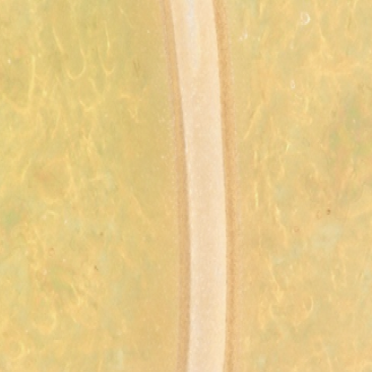

Protective film cutting Protective film cutting

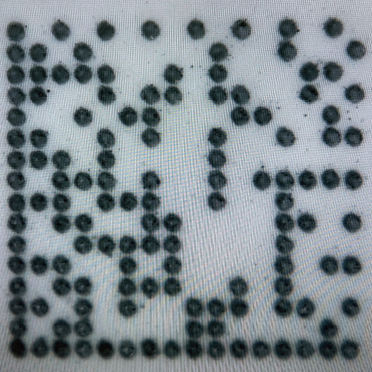

2D Barcode marking 2D Barcode marking

Technical specification

Detailed related technical specifications.

Items Specification
System includes: Light source, stage control system, computer, etc. Dimension 1700mm(W)X1600mm(L)X1580mm(H) (stacklight not included)
Weight 2000 kg
Stage XY-axis Stage table size 500mmX600mm
Processing speed 50mm/sec~400mm/sec
Light source Laser wavelength nano 355nm
Power 30W
