PCB Industry / Roll to Roll 2D Barcode Laser Marking Machine

FPCB Laser Routing

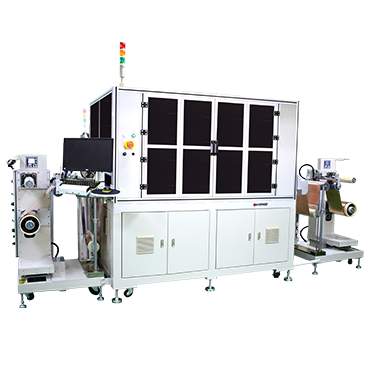

Roll to Roll 2D Barcode Laser Marking Machine

High accuracy and fine processing craftsmanship widely adopted by many multinational manufacturers.

  • Ultra-short pulse micro high-speed cutting machine.
  • First choice for 5G generation material machining.
  • Applicable on 5G LCP, macromolecule and metallic materials.
  • Premium beam quality with no thermal effect.
  • Pairing with various light sources based on demand.
  • Optional Roll to Roll, Sheet to Sheet automatic loading and unloading production system.
  • Featuring power monitor mechanism providing stable output.
  • Optional production profiling system.
  • Employed by world renowned manufacturers.
  • 【Application】 Optional Roll to Roll, Sheet to Sheet automatic loading and unloading production system, automatic production

Product processing instruction

Other Product Description

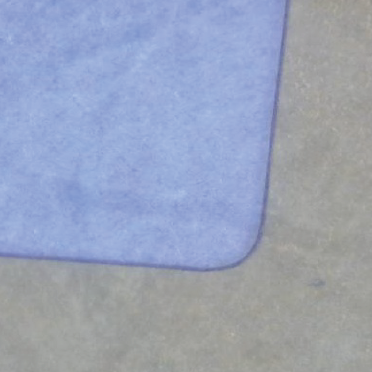

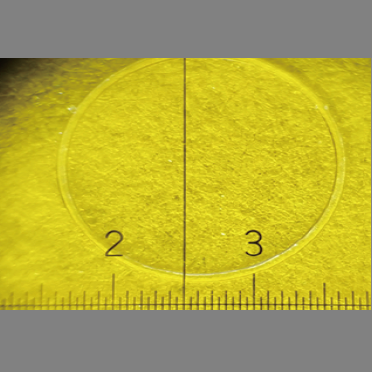

Protective film cutting Protective film cutting
Protective film cutting Protective film cutting
Protective film cutting Protective film cutting

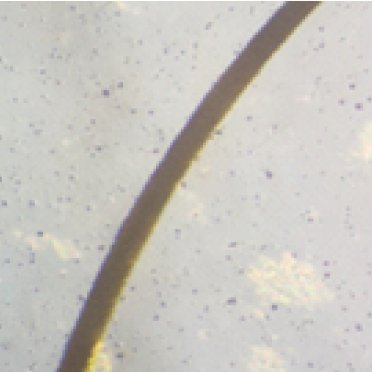

Black protection cutting Black protection cutting

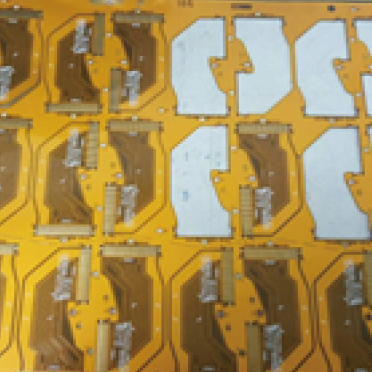

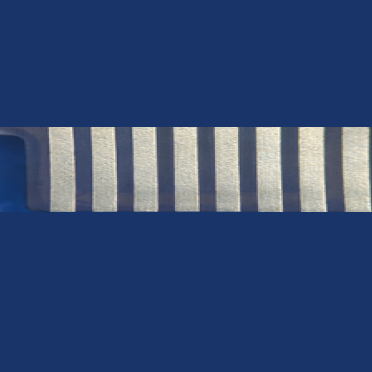

FPC product cutting FPC product cutting

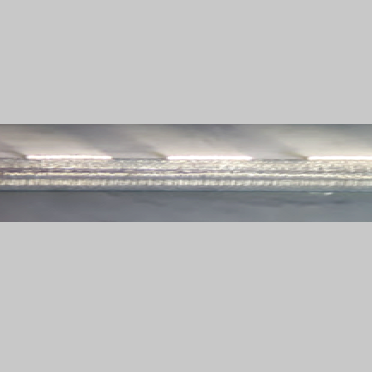

Rigid-flex PCB cutting Rigid-flex PCB cutting

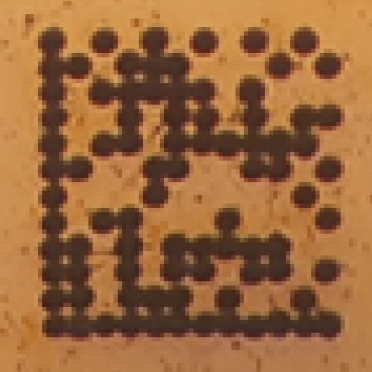

2D Barcode thin copper engraving 2D Barcode thin copper engraving

Technical specification

Detailed related technical specifications.

Items Specification
System Includes: Light source, stage control system, computer, etc. Dimension 2100mm(W)X1880mm(L)X2050mm(H) (stacklight not included)
Weight 4000 kg
Stage XY-axis stage Stage table size 650mmX650mm(customizable)
Processing speed 50mm/sec~400mm/sec
Light source Laser wavelength Pico UV 355nm
Power 12~50W
