Non-contact Profilometer

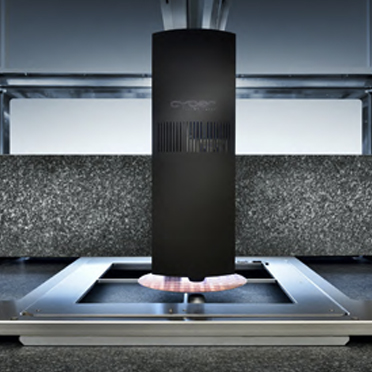

Germany Cyber Technologies CT 600ST

CT 600ST
CT 600ST
  • Dual Non-Contact Measurement System For Large Parts.
  • 3d mapping of thickness,bow, warpage and rouhgness。
  • User friendly concept。
  • Sophisticated analysis and automation software。
  • 【Applicable fields】 Typical applications for the CT 600ST are the analysis and quality control of large parts, such as large wafers, PCBs, substrates, glas and other optical components.
    Thickness, geometry and position measurement of highly contoured objects like lenses, gaskets, turbine blades, as well as flatness and coplanarity analysis are other popular applications.
  • 【Application areas】 Total thickness variation (TTV)、Flatness, warpage and bow、Printed products, systems or devices、Panel level packaging devices、Fuel cell elements、Medical devices.

Product Description

Other Product Description

CT 600ST CT 600ST
Dual Non-Contact Measurement System For Large Parts Dual Non-Contact Measurement System For Large Parts

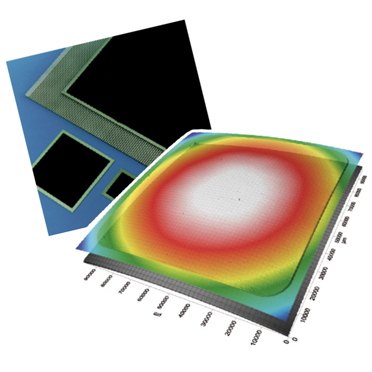

Thickness of a Fuel Cell Component Thickness of a Fuel Cell Component

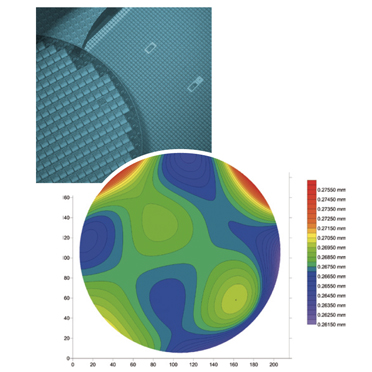

Wafer Thickness Map(TTV)t Wafer Thickness Map(TTV)t

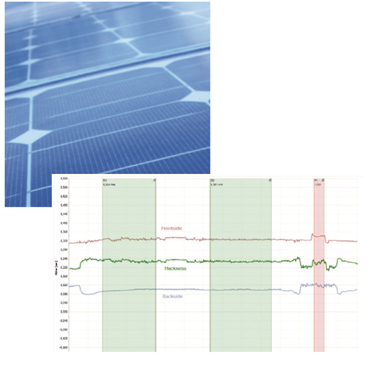

Front-and Backside Metallization of a Solar Cell Front-and Backside Metallization of a Solar Cell

Product Description

Other Product Description

NO Items Description
1 DIMENSIONS(L X W X H) 2785 x 2120 x 1620 [mm]
(110 x 84 x 64 [in])
including control panel
and signal tower
2 WEIGHT 2500 kg(5500 lbs)
3 SYSTEM CONTROLLER Includes Motion Control,Sensor Controller (4 kHz), Power Supplies,USB Interface to Workstation
4 WORKSTATION PC Inquire about current specification,24” widescreen monitor
5 CONNECTIONS Ethernet, DVD Drive, USB(front and back side),Parallel Port, Keyboard, Mouse, DVI and Analog Video Output
6 POWER REQUIREMENTS 100-240 V AC, 50-60 Hz, 2.0 amps(240 V), 5 amps (100V)
7 OPERATING TEMPERATURE 20°C(68F)
8 MEASUREMENT SURFACE SIZE 600x600[mm](24x24[in])
9 LINEAR ENCODER RESOLUTION 0.05μm(2 μin)
10 INIMUM LATERAL RESOLUTION 1 micron
11 TRAVEL LIMITS INXAND Y(MOTORIZED) 600x600[mm](24x24[in])<
12 TRAVEL LIMIT IN Z(MOTORIZED) 100mm(4 in)(top & bottom)
12 AVAILABLE SENSORS Confocal White Light Sensors
