SMT/BGA N2 REFLOW FURNACE
- The most energy saving multi-zone reflow furnace.
- Featuring MULTI-HOLE AIR/N2 CIRCULATED PANEL HEATER with good temperature uniformity, high efficiency of heat exchange, and fast temperature compensation, long service life, etc.
- Optional N2 pipeline for N2 Reflow.
- Computerized P, I, D temperature control system.
- Forced Flux exhaust system and lift-up oven design that are easy to clean and maintain.
- Can be linked with a personal computer to set up, store, and monitor with auto history and autosave functions.
- All kinds of SMD flow assembly can be easily achieved. (★ Accommodating lead-free assembly)
- 【Application areas】 FPC and PCB industries.
Product Description
Other Product Description
BGA N2

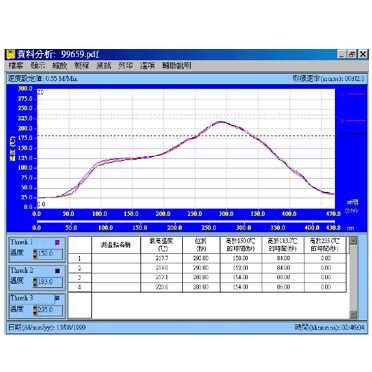

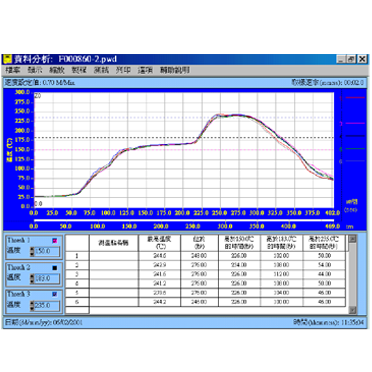

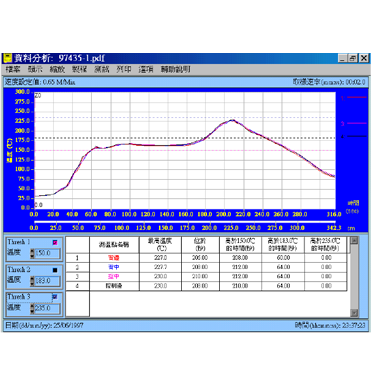

THERMOTRACKER Model : PRO-1000
| Specification / Model | BGA-18-M10HANO | BGA-18-M12HANO | BGA-18-M14HANO |
|---|---|---|---|
| Overall Dimension (mm) (LXWXH) (approx.) | 4600 x 1200 x 1400 | 5000 X 1200 x 1400 | 5300 x 1200 x 1400 |
| Number of Heating Zone | 5 zone | 6 zone | 7 zone |
| Power Rated、220V、3、60Hz ( 380 V、3P、4Wires is available ) | 31 kW | 37 kW | 42 kW |
| Max. Process Height(mm) | 30 | 30 | 30 |
| Max. Speed Transportation (cm) | 20 -120 | 20 -120 | 20 -120 |
| Max. Board Width (mm) | 380 | 380 | 380 |
| Temperature Range Of Heater(℃) | Ambient – 350 | Ambient – 350 | Ambient – 350 |
