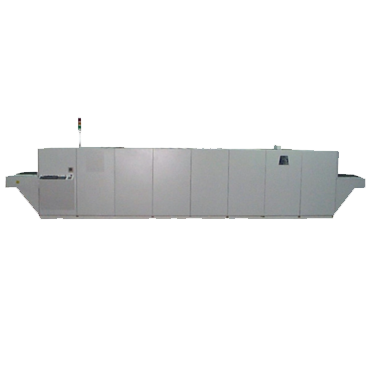

High temperature firing furnace HY

高溫燒成爐HY
High temperature firing furnace HY

HIGH TEMPERATURE FIRING FURNACE

  • 600ºC/900ºC hybrid circuit or chip resistor firing process.
  • Special high temperature heater design with fast heat compensation and long service life.
  • Conveyor belt does not turn black after use to contaminate substrate, reducing the frequency of disruption.

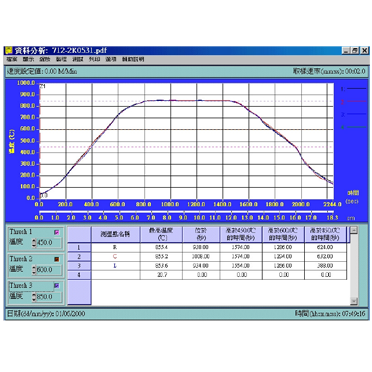

  • Temperature uniformity on left, center and right of the conveyor belt that is controllable within +/-2ºC.
  • Featuring smart multi-loops PID temperature controller with fast and highly efficient heat compensation.
  • 24-hour automatic monitoring, recording and autosave.
  • Unique exhaust pipe design reduces the frequency of pipeline cleaning and saves expensive compressed air from loss.
  • 【Application areas】 FPC and PCB industries.

Product Description

Other Product Description

High temperature firing furnace HY High temperature firing furnace HY
High temperature firing furnace HY
High temperature firing furnace HY
High temperature firing furnace HY
Specification / Model HY900-18- HY900-25- HY900-36-
HY600-18- HY600-25- HY600-36-
M10Z M15Z M10Z M15Z M10Z M15Z
Overall Dimension(mm)(approx.) 7340(L)
1200(W)
1400(H)
9000(L)
1200(W)
1400(H)
7570(L)
1400(W)
1500(H)
9710(L)
1400(W)
1500(H)
7570(L)
1800(W)
1560(H)
97100(L)
1800(W)
1560(H)
Power Rated(Input:220V,3P,60Hz or 380 V,3P,4Wires) 8 10 9 12 10 14
Number of Heating Zone 5 zone 6 zone 7 zone 5 zone 6 zone 7 zone
Width of mesh belt(mm) 4600x1200x1400 4900x1200x1400 4900x1200x1400
Max.Process Height(mm) 20-100 20-100 20-145
Max.Speed of Transportation(cm/min) 220 V, 3 P, 3Wires or 380 V, 3P,4 Wires ; 50/60 Hz is available
Temperature Range Of Set point(℃) Temperature Range Of Set point(℃)
