Dry Furnace

高溫氮氣燒成爐
Dry Furnace

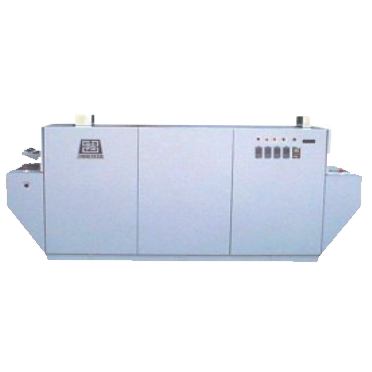

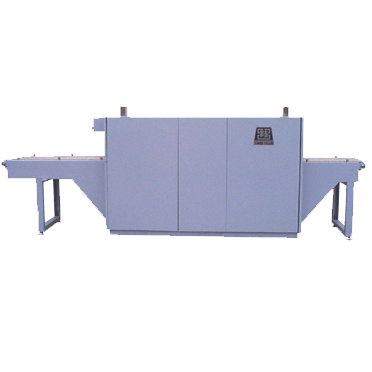

DRYING FURNACE FOR PASTE PRINTING

  • Thick film drying process.
  • Temperature controller(S type)–Single-loops smart P.I.D temperature controller with fast and highly efficient heat compensation.
  • Each heater is paired with dual overheat protection system.
  • Depending on different characteristics of printing paste, a suitable heater may be chosen in the design.
  • Common temperature standard model: 200ºC(max.), or higher temperature upon request.
  • 【Application areas】 FPC and PCB industries.

Product Description

Other Product Description

Dry Furnace Dry Furnace
Dry Furnace
Dry Furnace
Dry Furnace
Specification / Model DRY-18 DRY-24
S3H S4H S3H S4H
Overall Dimension(mm)(approx.) 3570(L)
900(W)
1354(H)
3810(L)
900(W)
1354(H)
3570(L)
1050(W)
1354(H)
3810(L)
1050(W)
1354(H)
Power Rated(Input:220V,3P,60Hz or 380 V,3P,4Wires) 6.5KW 8.5KW 9KW 12KW
Number of Heating Zone 3 4 3 4
Width of mesh belt(mm) 450 600
Max.Process Height 25 25
Max.Speed of Transportation 120(cm/min) 120(cm/min)
Temperature Range Of Set point Ambient-450℃ Ambient-450℃
