SCAN CT is a software package for measuring and analyzing 2D profiles and 3D raster maps. It offers complete 2D and 3D surface measurement parameters as well as sophisticated filter and compensation methods.

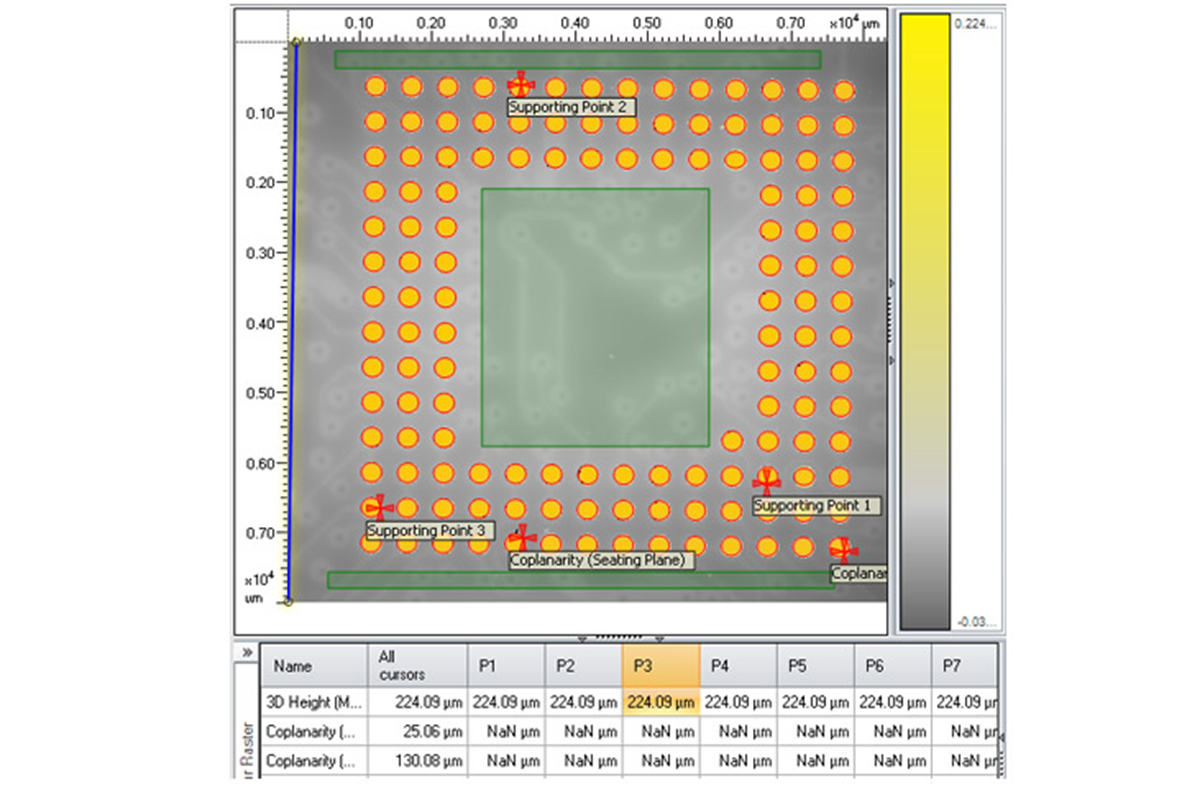

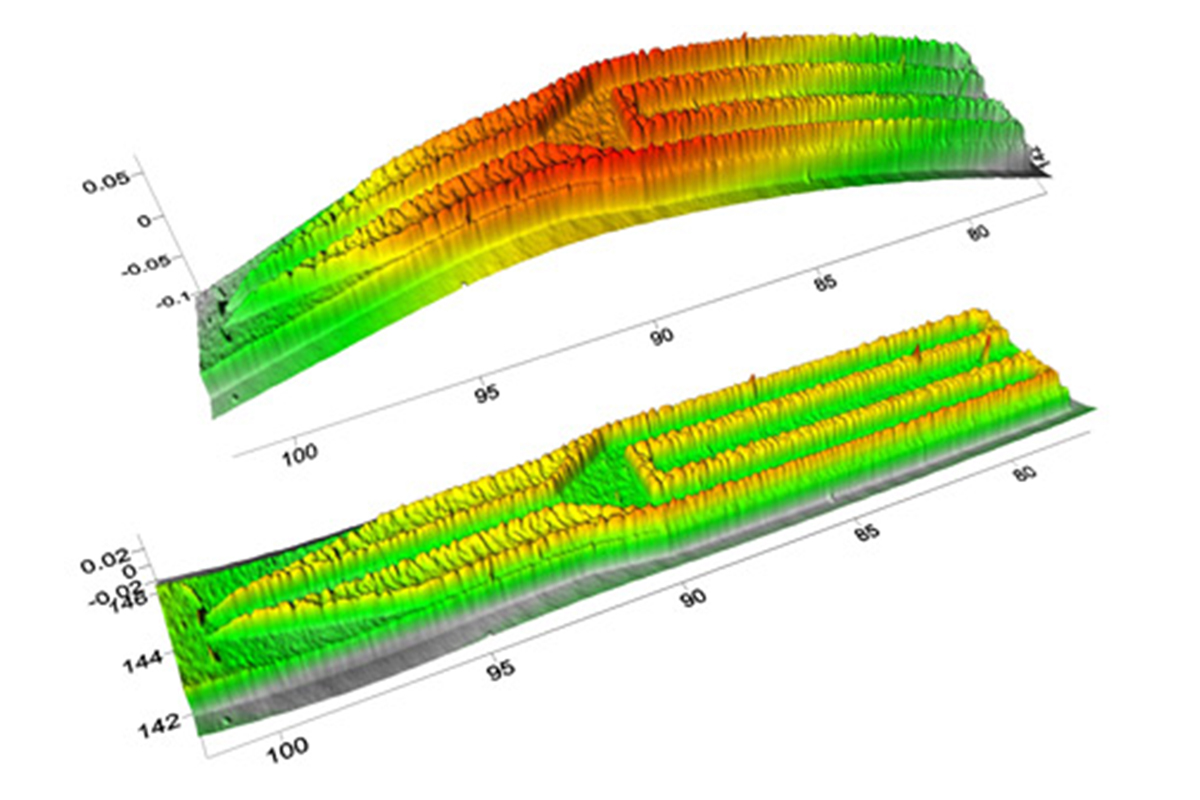

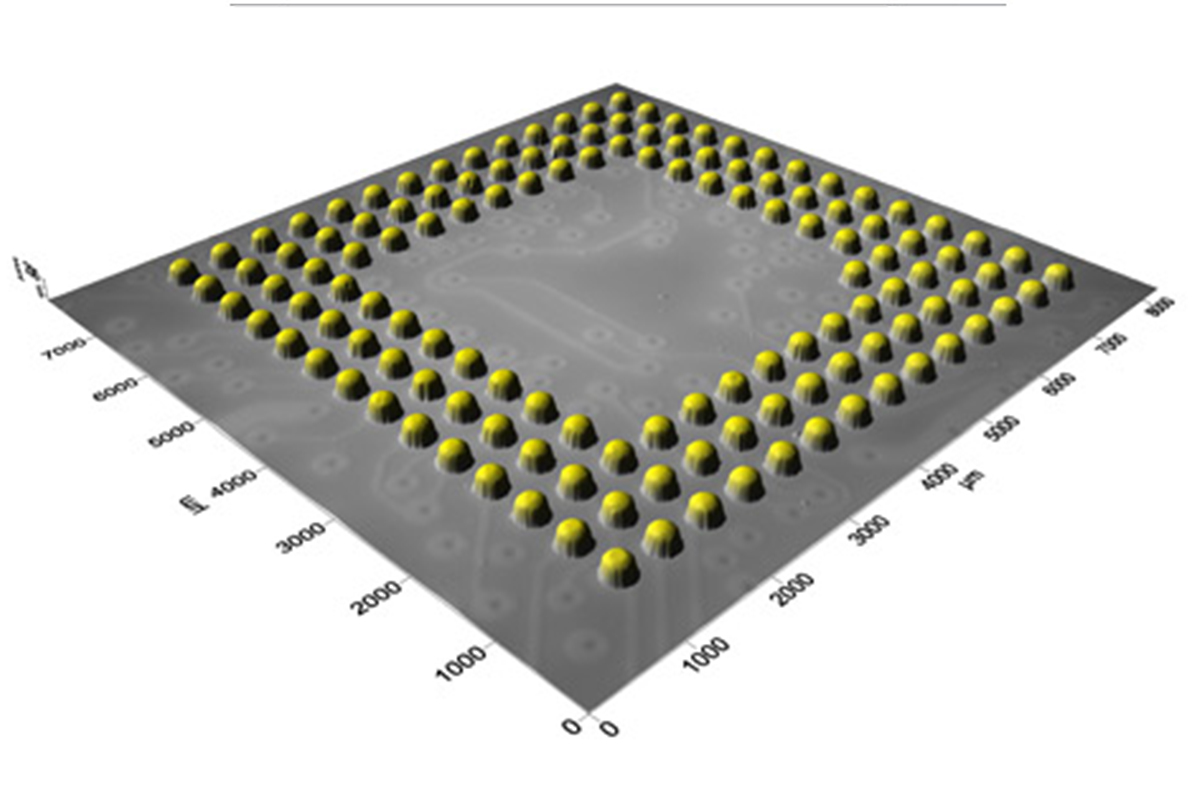

COPLANARITY
  • Complete 2D and 3D surface analysis
  • Profile and 3D Roughness measurements according to DIN ISO EN standards
  • Comprehensive profile and surface compensations
  • Advanced filter technologies
  • Uni- / bi-directional scanning
  • Linear, circular and elipsodal scanning
  • Simultaneous data collection of up to 5 sensors
  • Dedicated user management
  • Up to 200 Mio data points per raster
  • Fast multi-thread technology

FEATURES & HIGHLIGTHS OF SCAN CT

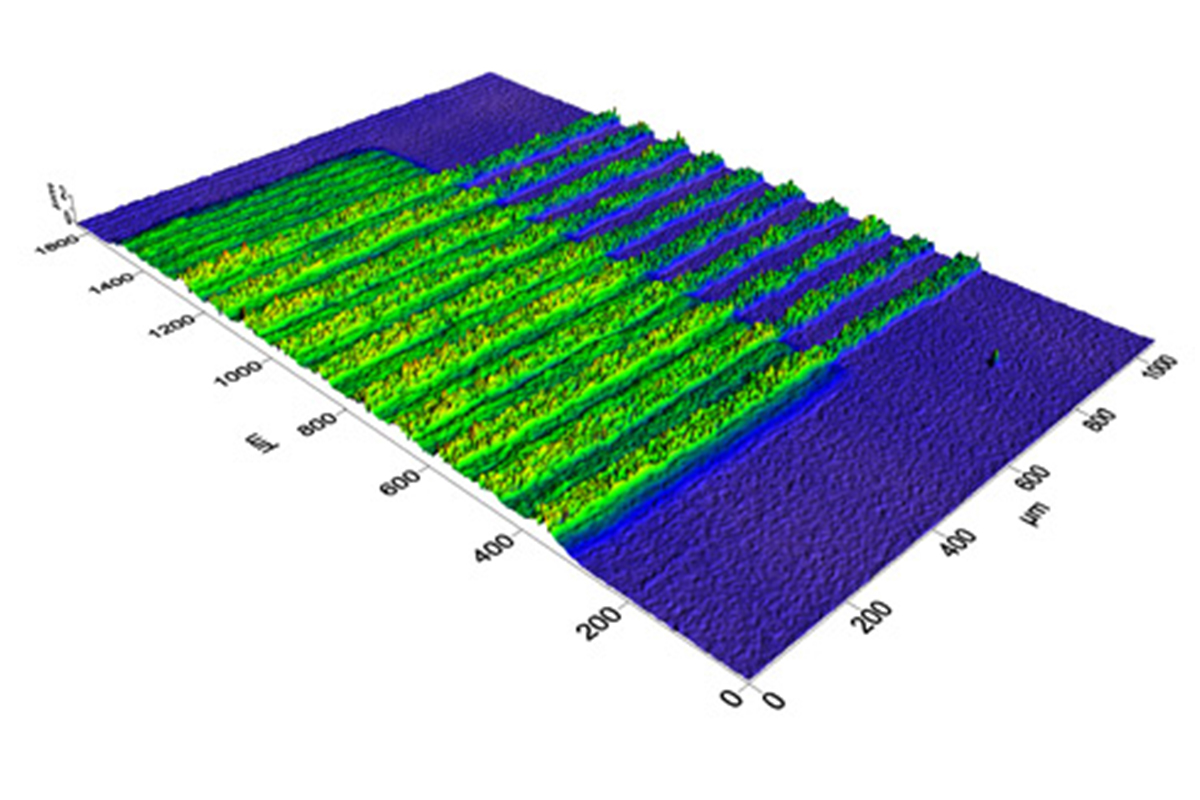

2D PROFILE MEASUREMENT 2D PROFILE MEASUREMENT
  • Step Height (avg., max. and min. height)
  • Flatness and Warpage
  • Width and Length
  • Cross Section Area
  • Angle, Radius, Contour Analysis
2D PROFILE MEASUREMENT 2D PROFILE MEASUREMENT

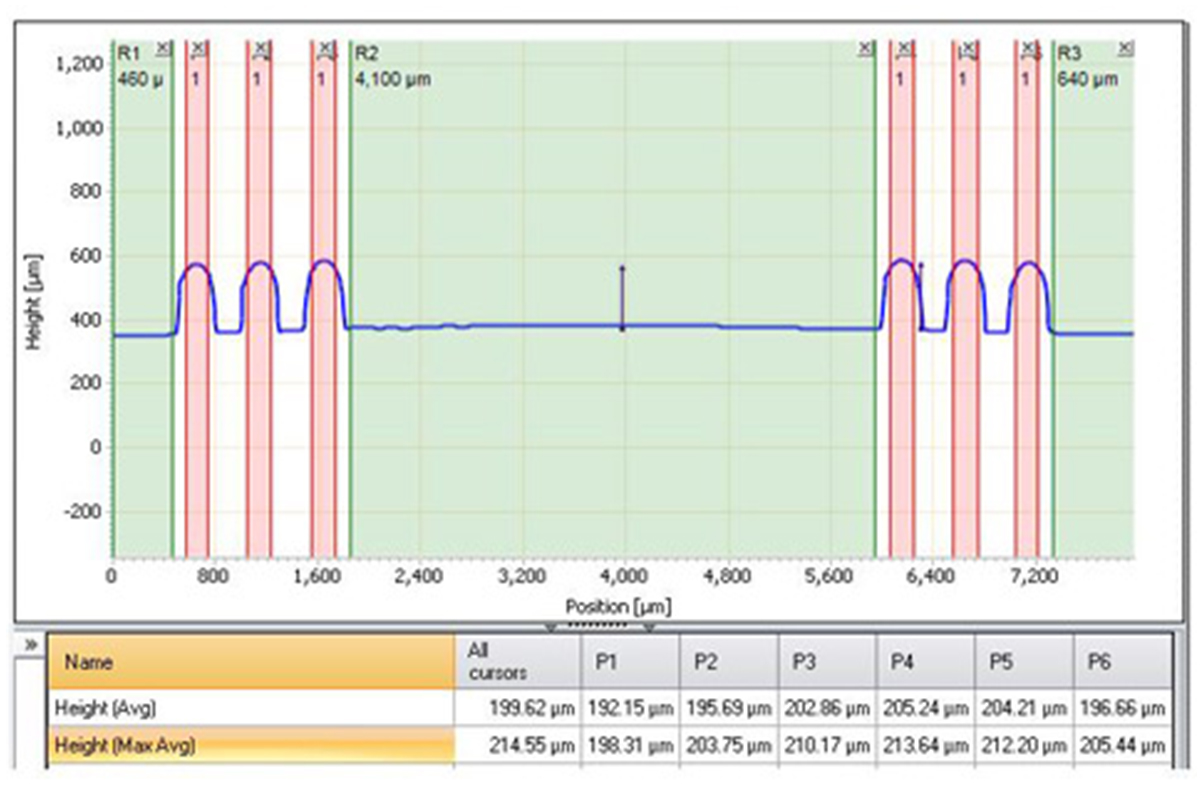

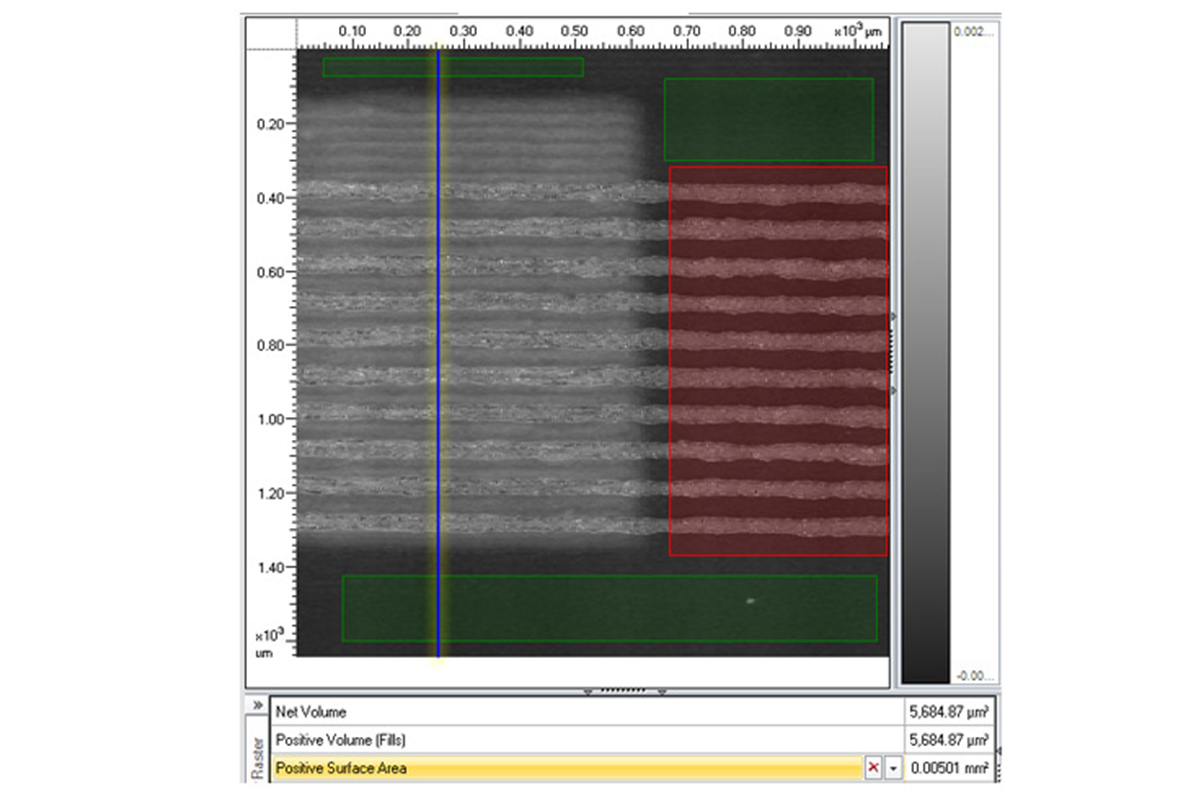

  • Define base line and measurement areas using reference and measurement cursors. Select analysis from dropdown menu.
PARALLEL DATA COLLECTION PARALLEL DATA COLLECTION
  • Parallel scanning with up to 4 sensors
  • Collect Top, Bottom and Thickness data
  • Average Thickness, Bow and Curvature
  • Total Thickness Variation

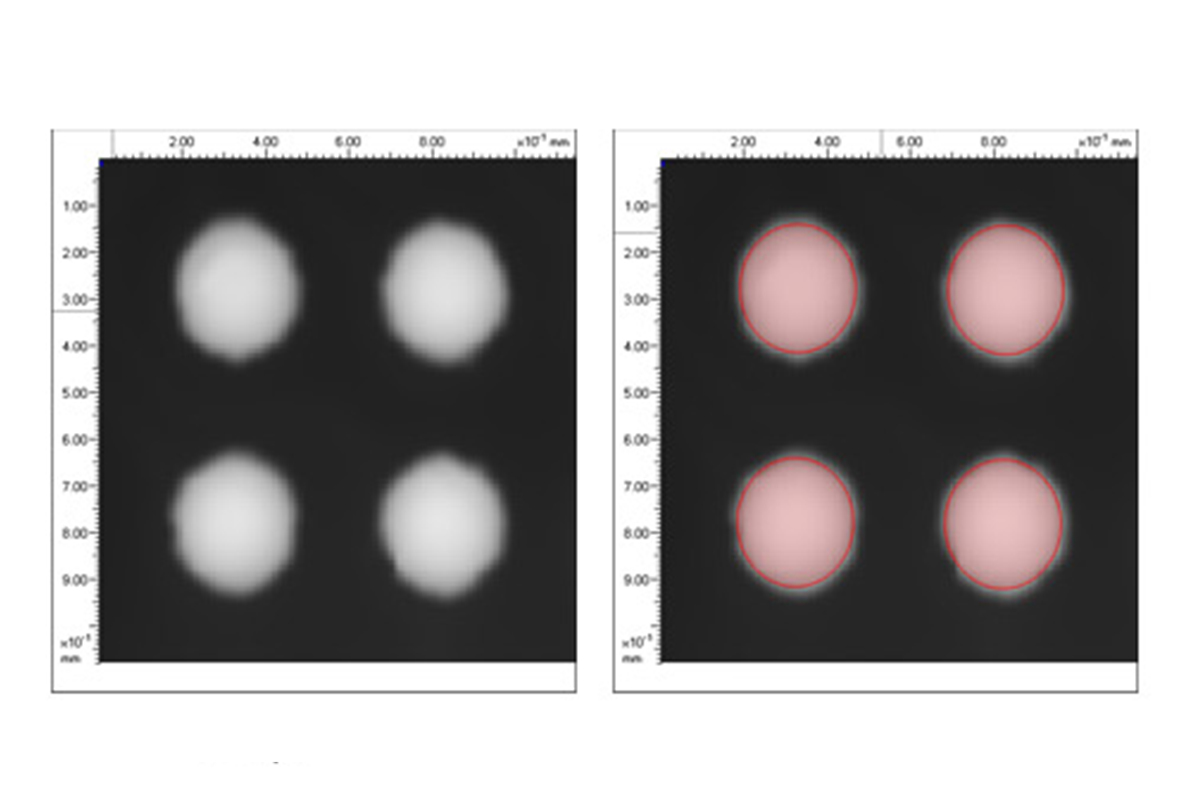

  • Parallel Intensity Masking
PARALLEL DATA COLLECTION PARALLEL DATA COLLECTION

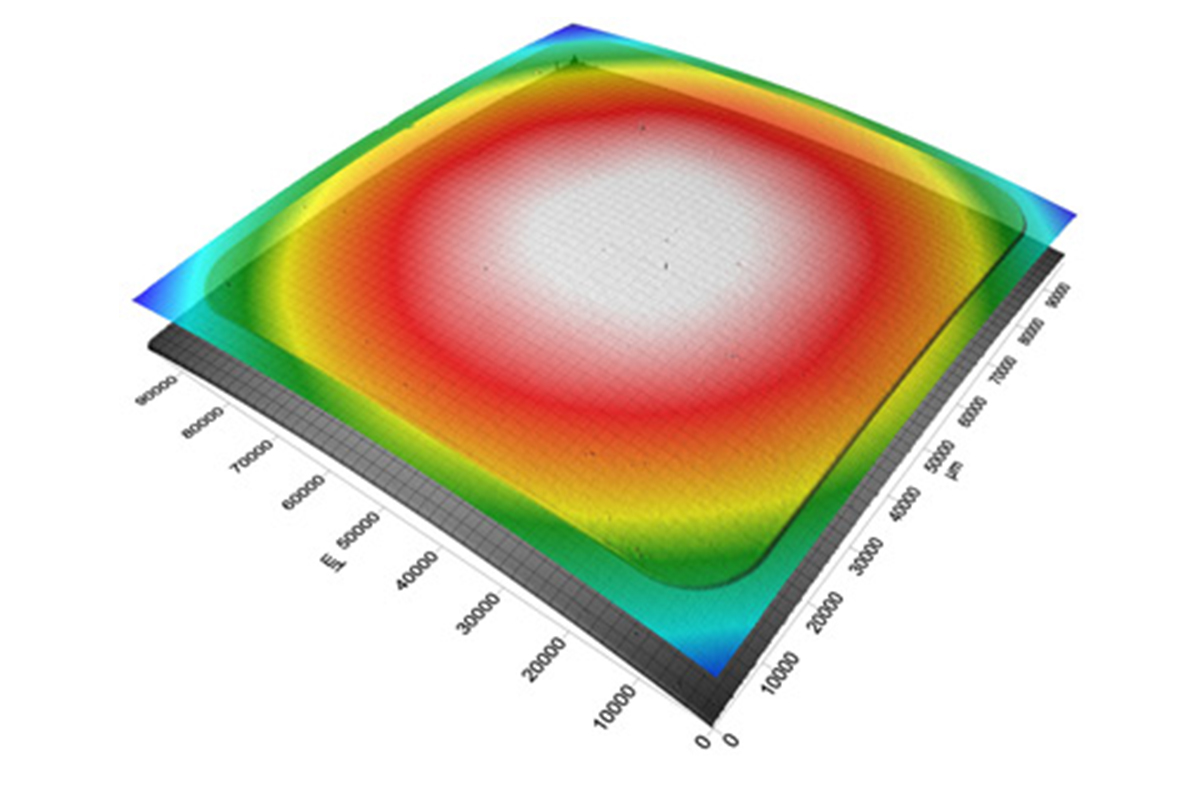

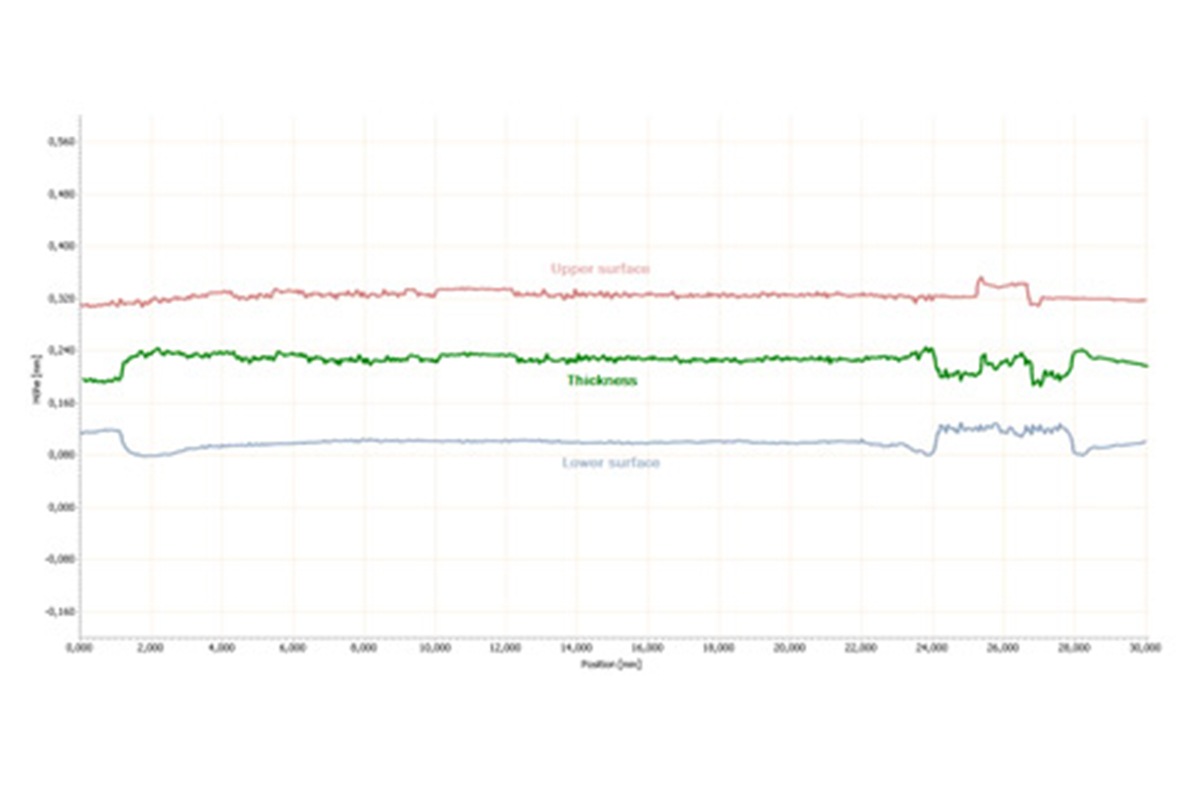

  • Graphical display of thickness maps and top/bottom surfaces.

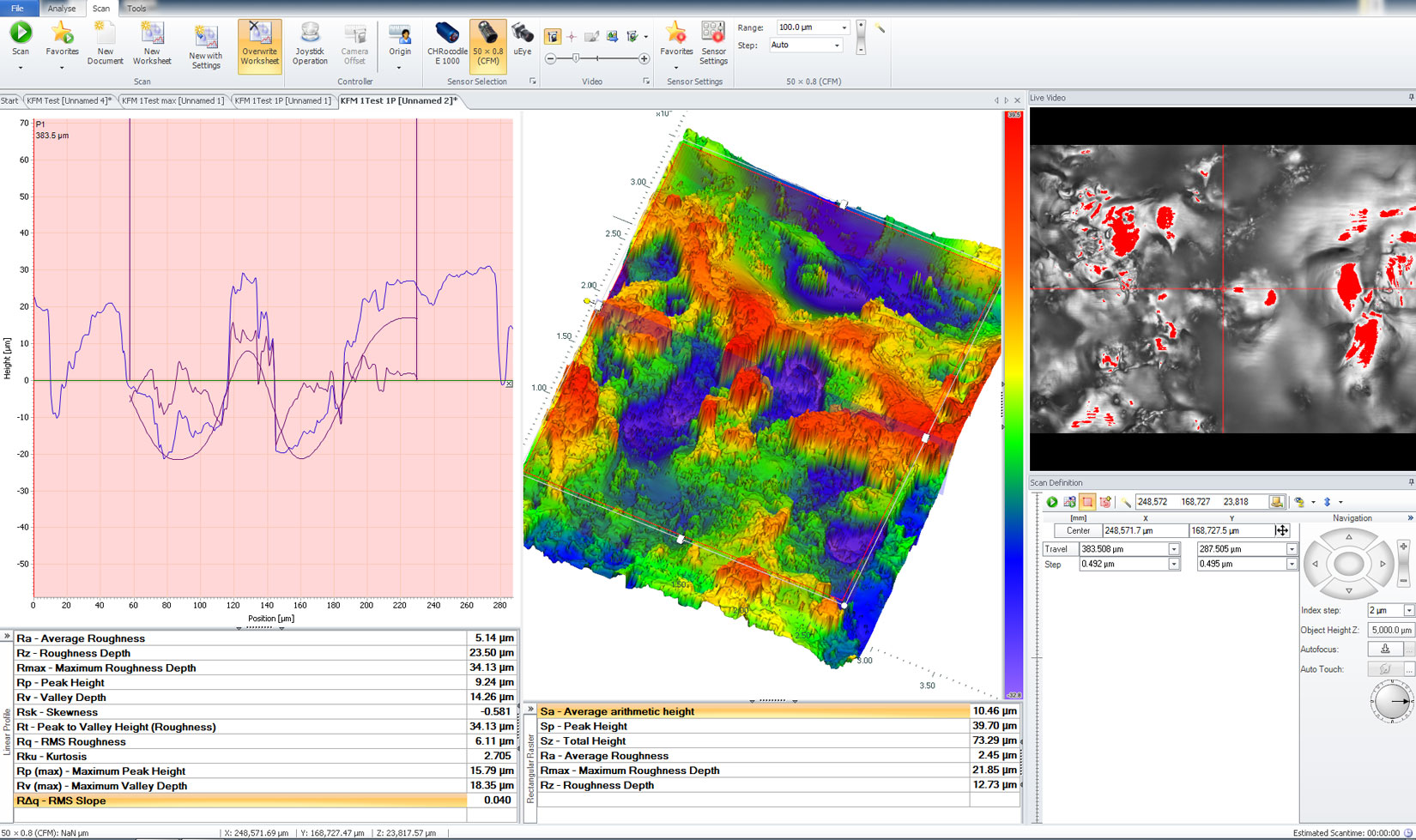

PROFILE ROUGHNESS MEASUREMENTS PROFILE ROUGHNESS MEASUREMENTS

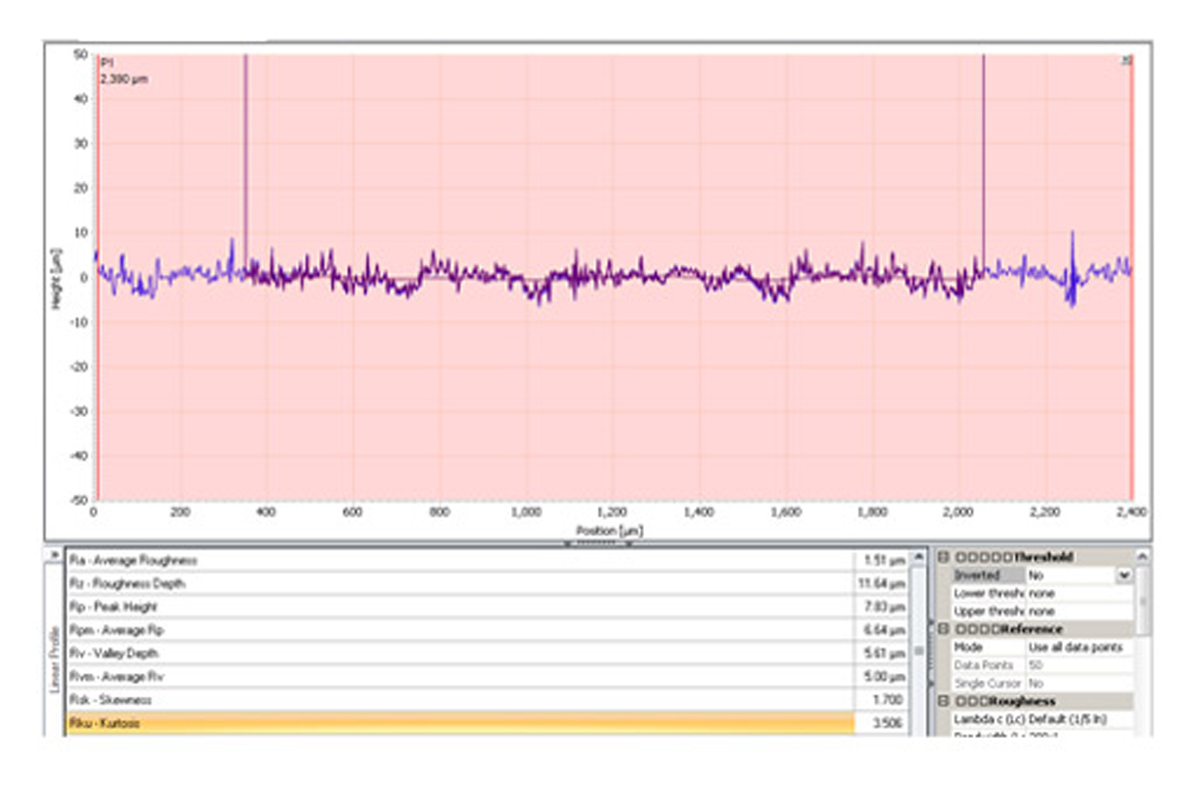

  • DIN EN ISO conform Roughness Parameters
  • Shape Removal Algorithm

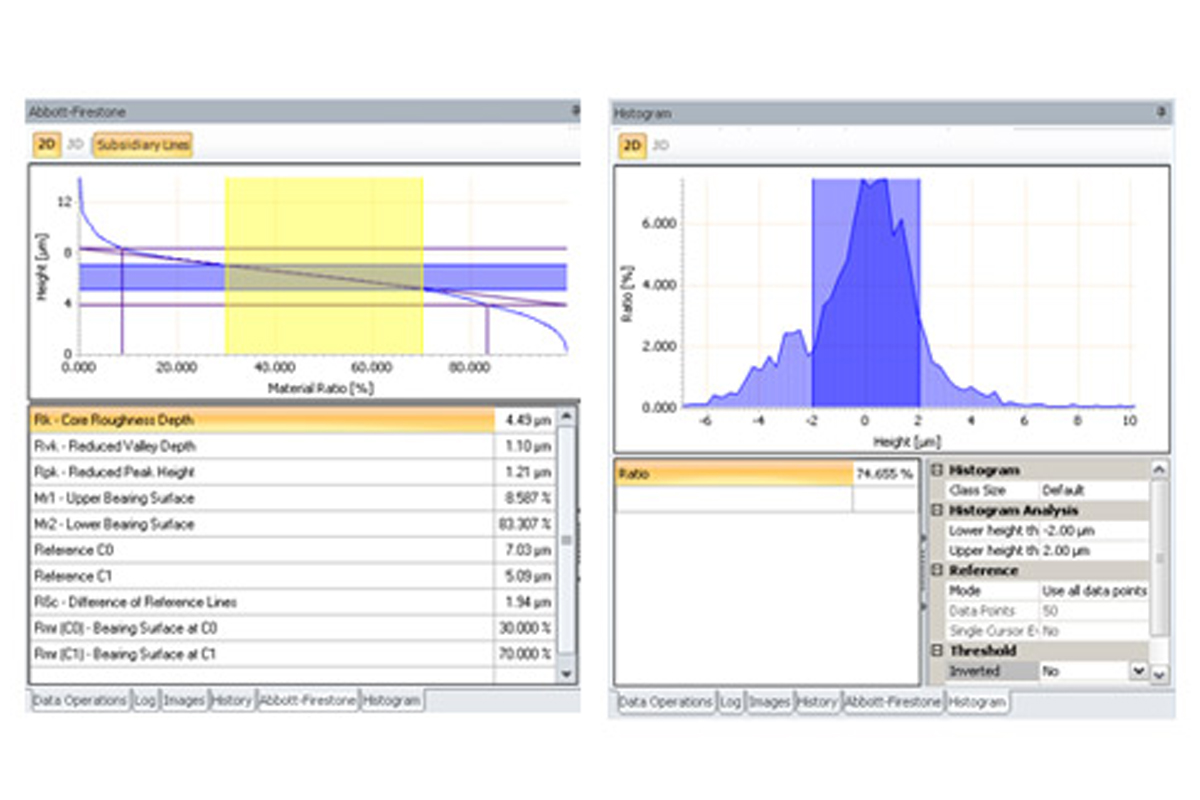

  • Abbott-Firestone Material Curve
  • Histogram
  • Tip Simulation for Non-Contact Systems
PROFILE ROUGHNESS MEASUREMENTS PROFILE ROUGHNESS MEASUREMENTS

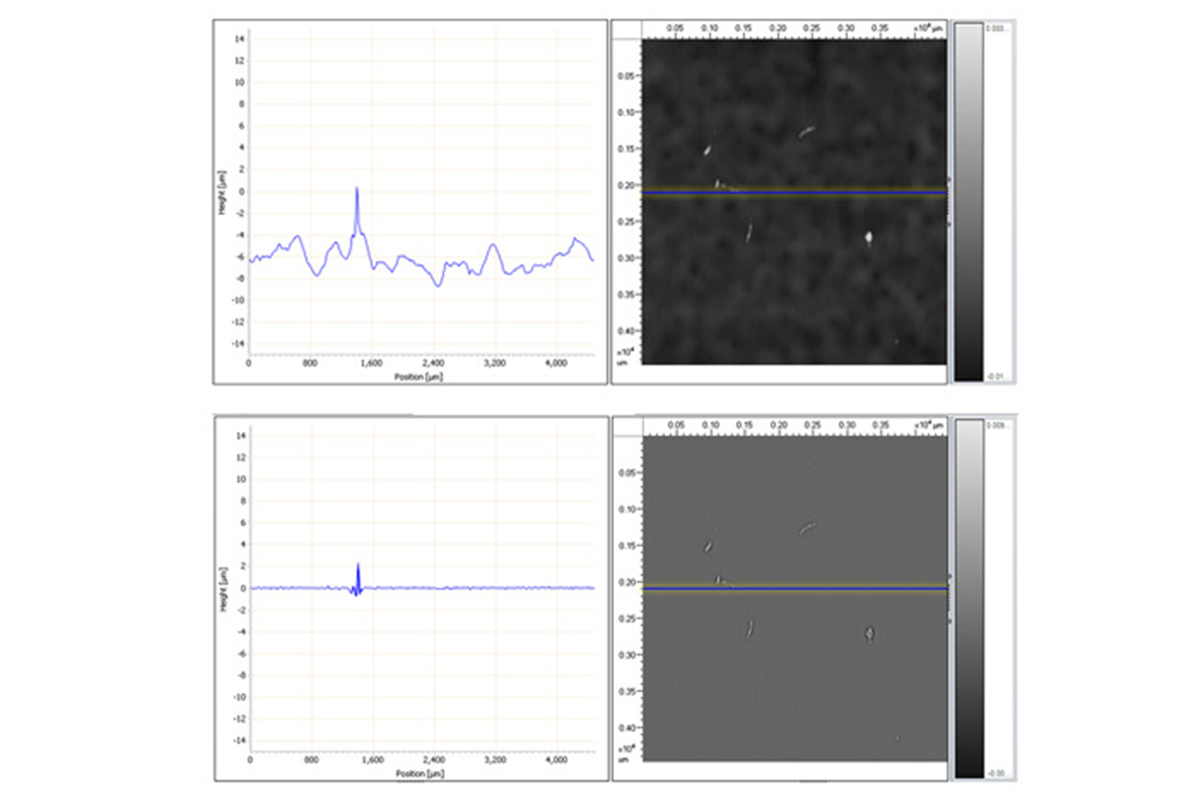

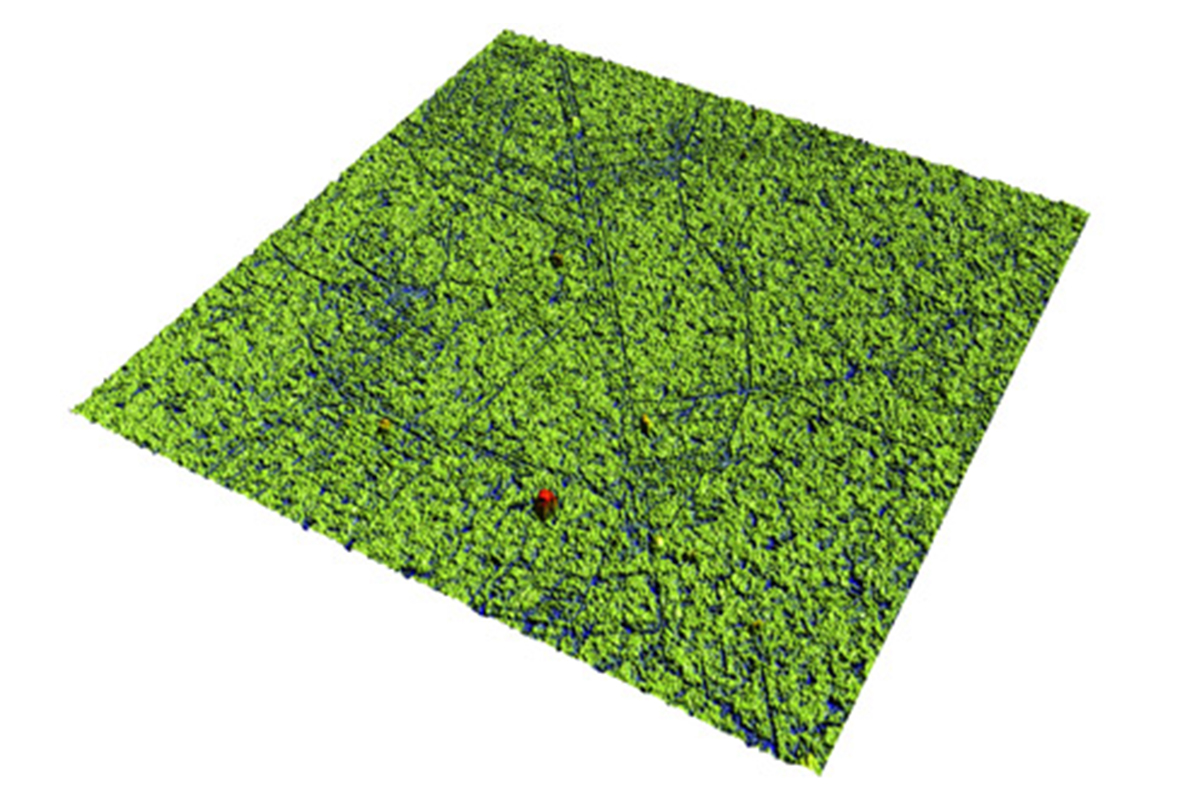

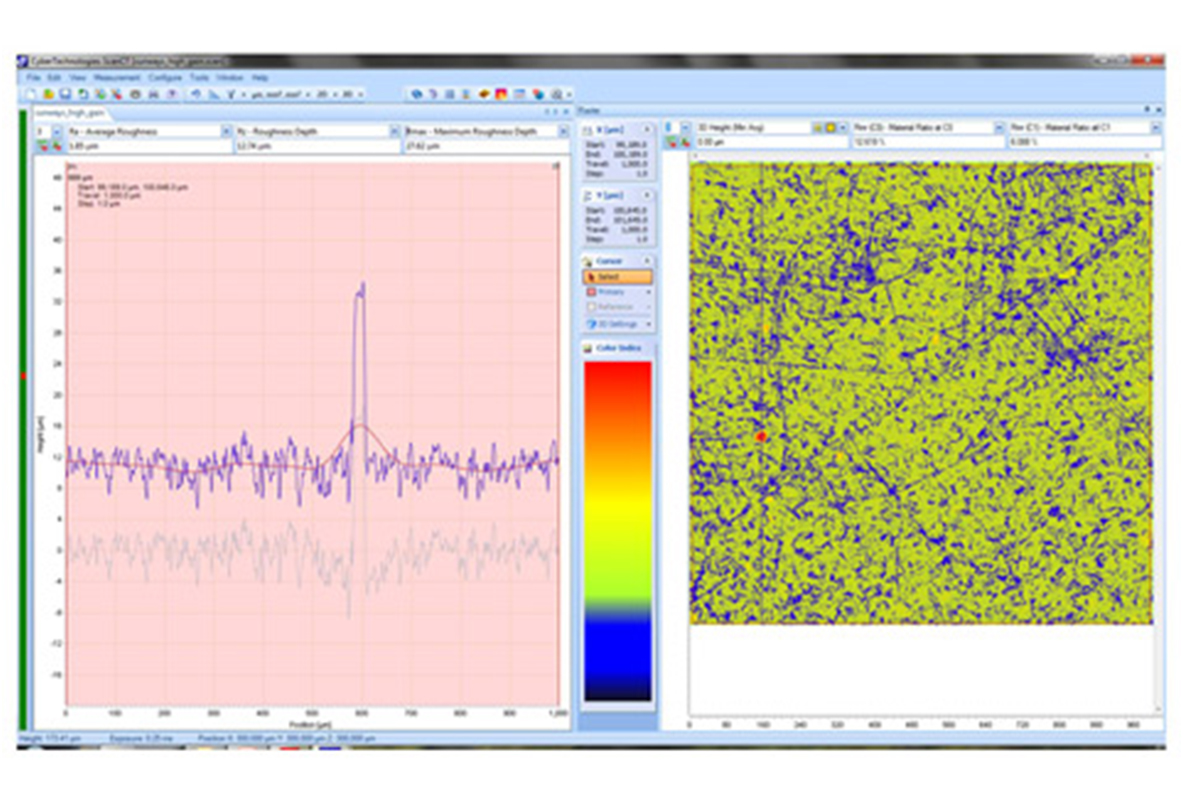

  • Advanced roughness analysis, even on round or angled surfaces using shape compensation. Display waviness and roughness profile.

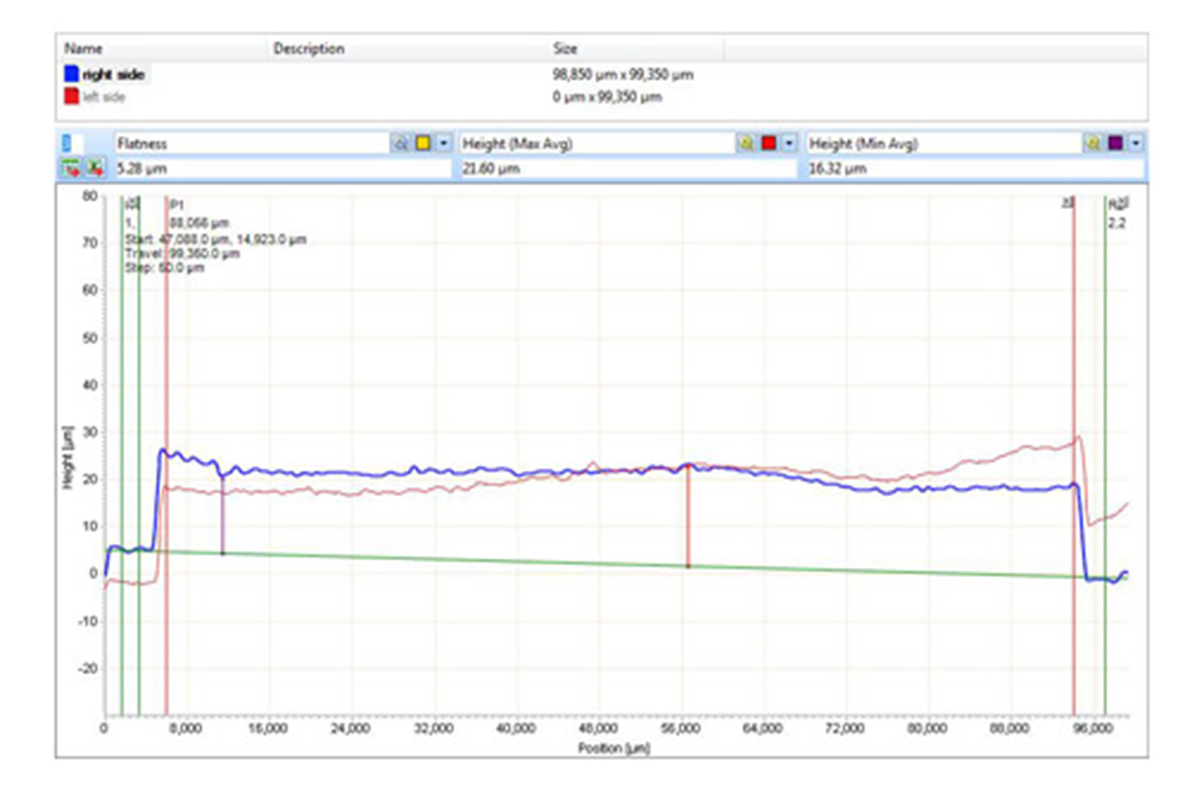

Cybe FLATNESS MEASUREMENT FLATNESS MEASUREMENT
