SCANSUITE系列軟體

ASCAN is a software package for creating automated 2D profile and 3D raster measurement routines. This allows the cyberTECHNOLOGIES VANTAGE and CT SERIES to be used in production. Measurement data are collected fast and without user interference for maximum repeatability.

ASCAN
  • Easy to use menu based software tool
  • No programming skills required
  • All analyses, compensations, and filters from SCAN CT
  • Automatic position correction using pattern recognition(fiducials and edge alignment)
  • Step and Repeat (with multilayer function)
  • Definition of tolerances (UCL, LCL, UWL, LWL)
  • Colored warning indications (good, bad, warning)

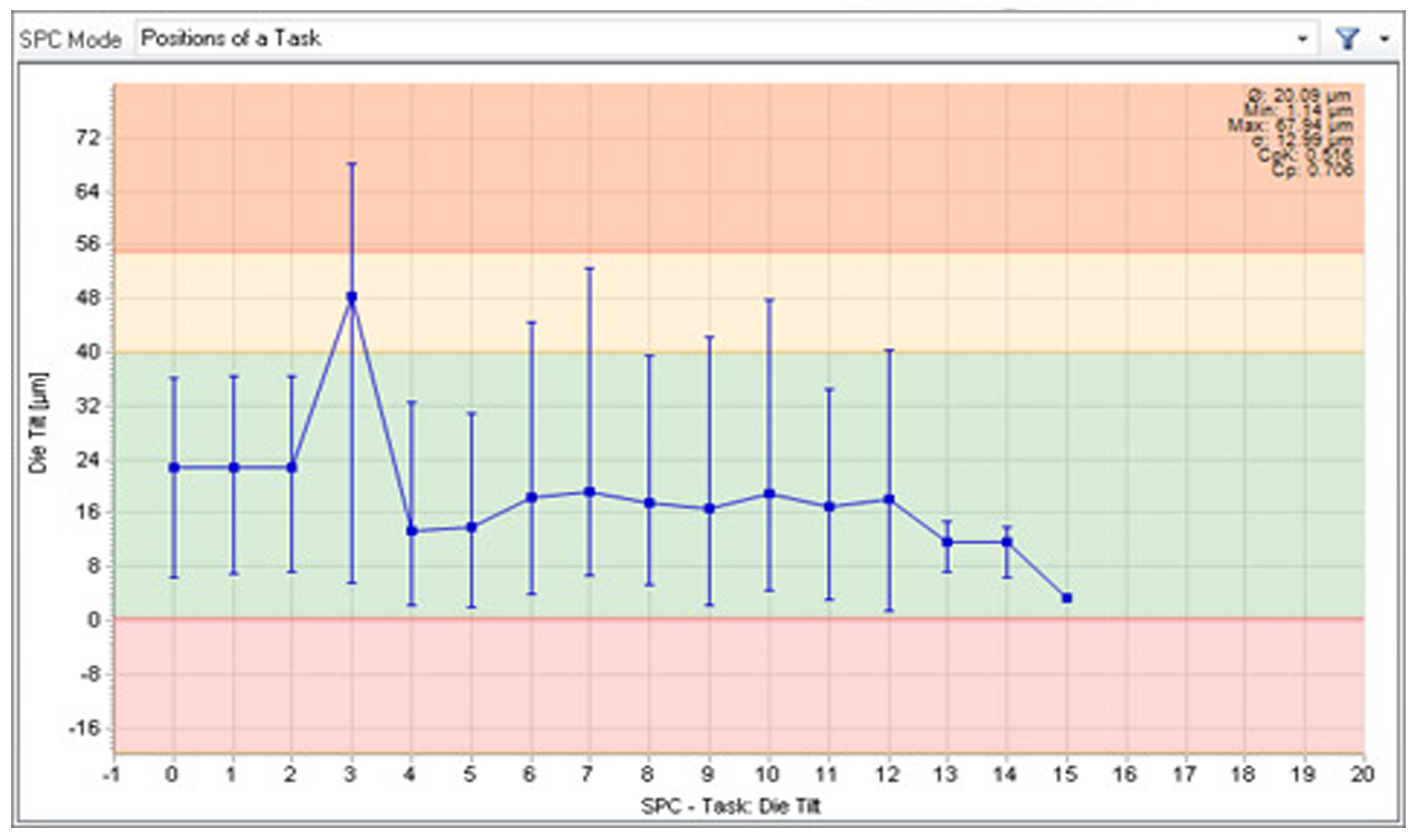

  • Built-in SPC charts with report function (x bar / rank, position-specific)
  • Flexible data saving option (automatic, manual, with user interaction)
  • Stylesheets for user defined data output format

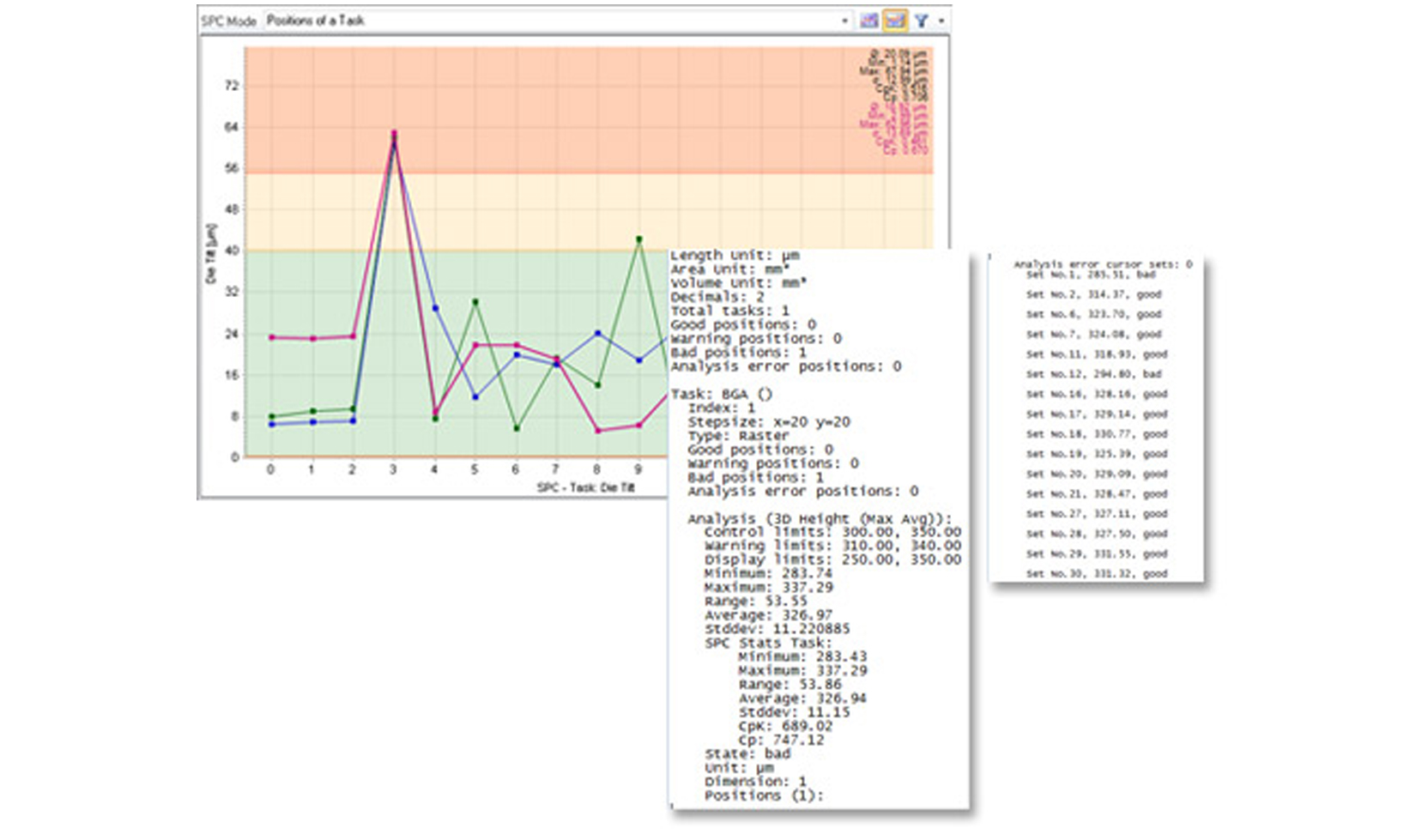

  • Integrated database for templates and SPC data
  • Web service for direct data transfer to CAQ system
  • 2D and 3D edge detection algorithm
  • 2D and 3D correlation algorithms
  • Easy programming using tasks and templates (no script language)
  • Virtual Tasks for user defined analysis and calculations
  • Table view for multiple results

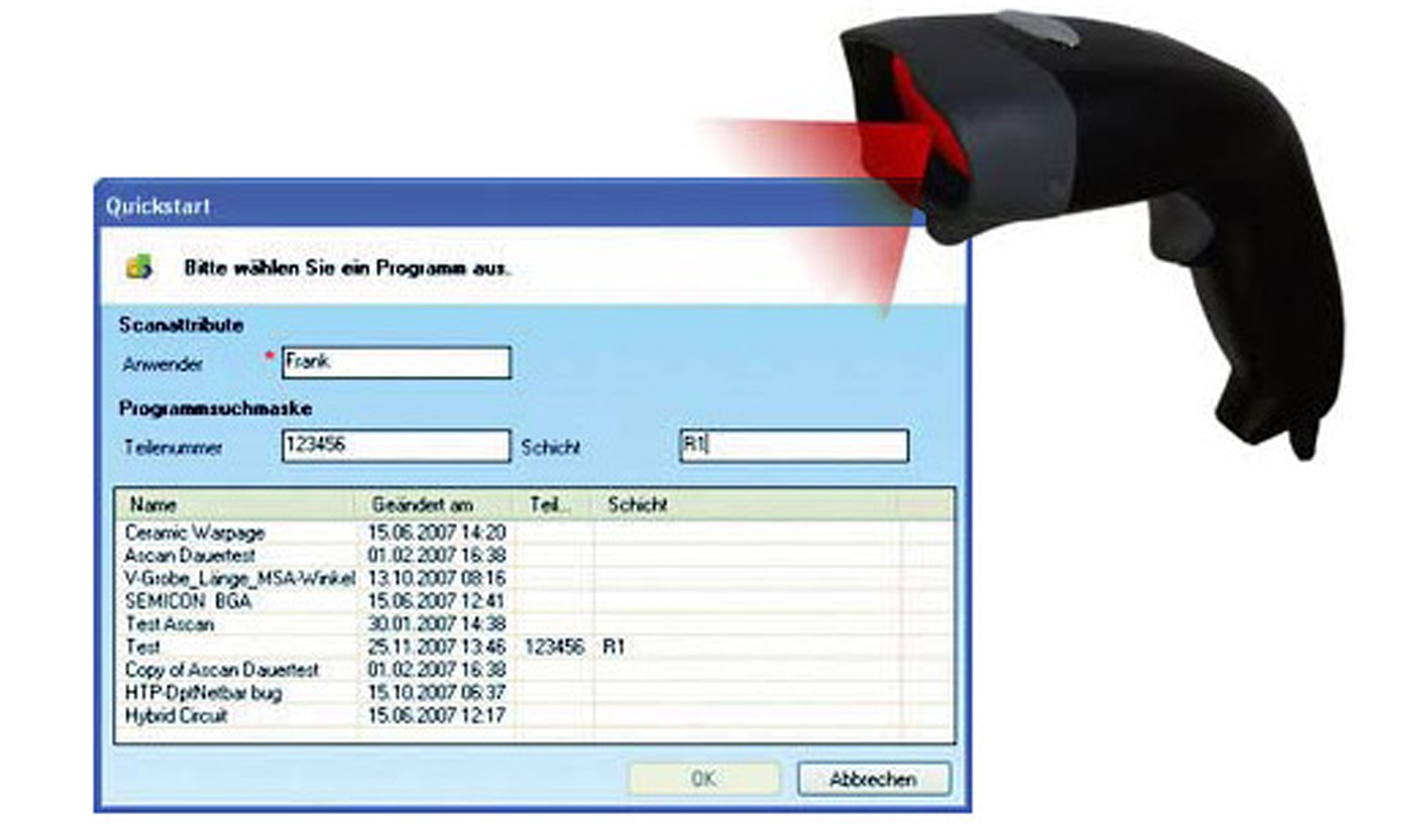

  • User fields (accepts barcode, DMC, predefined list etc.)
  • Traceability
  • Plug-Ins for customized software solutions
  • SECS/GEM

ASCAN FEATURES & HIGHLIGTHS

AUTOMATED MEASUREMENT AUTOMATED MEASUREMENT
  • Easy to use menu based software tool
  • No programming skills required
  • Automated data analysis without user interference
  • Ideal for use in production or laboratory
AUTOMATED MEASUREMENT AUTOMATED MEASUREMENT

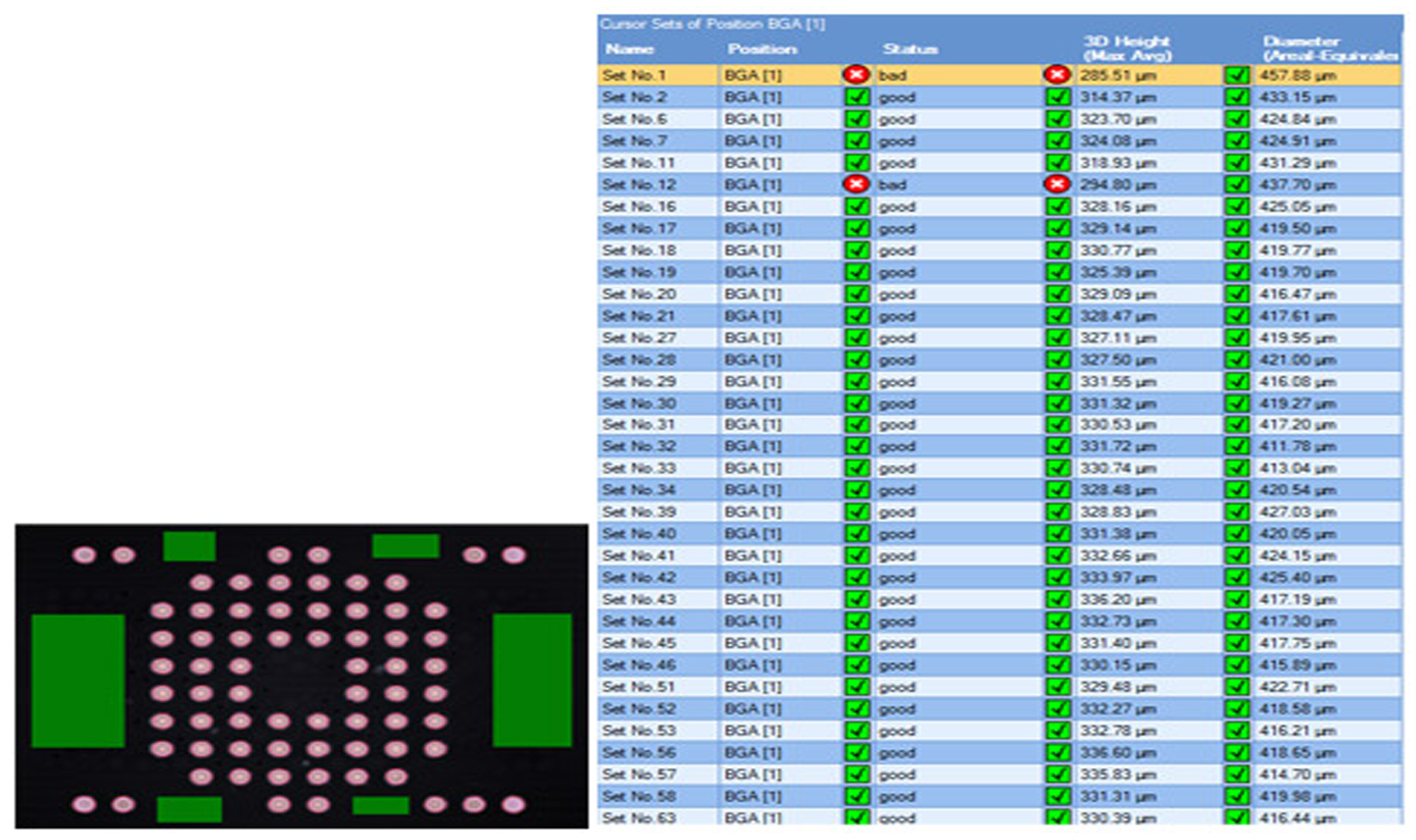

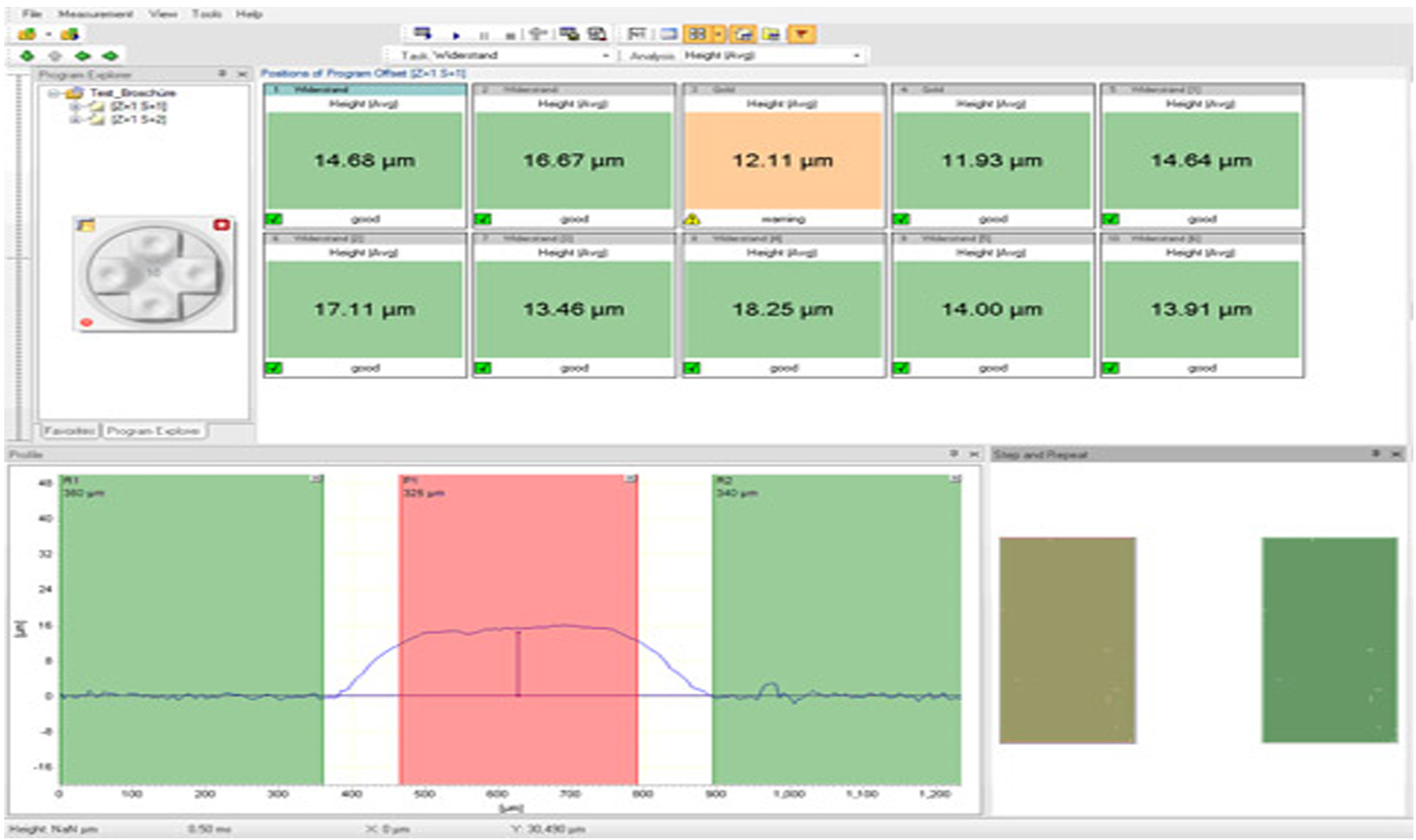

  • Multiple results per position, switch between box view and table view.

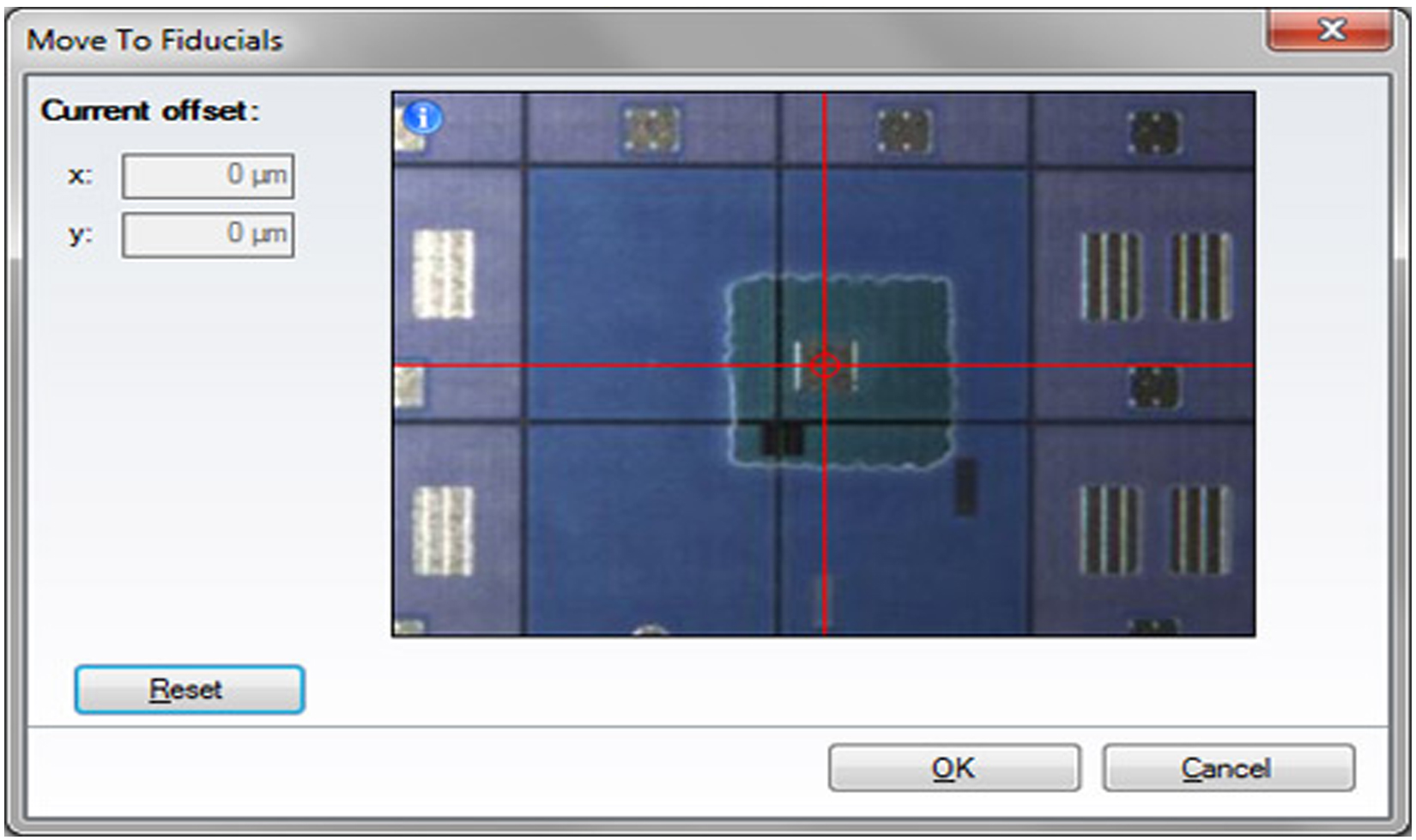

FIDUCIAL CORRECTION FIDUCIAL CORRECTION
  • Part offset and rotation compensation
  • Manual and automatic mode
  • Scan definitions follow part rotation

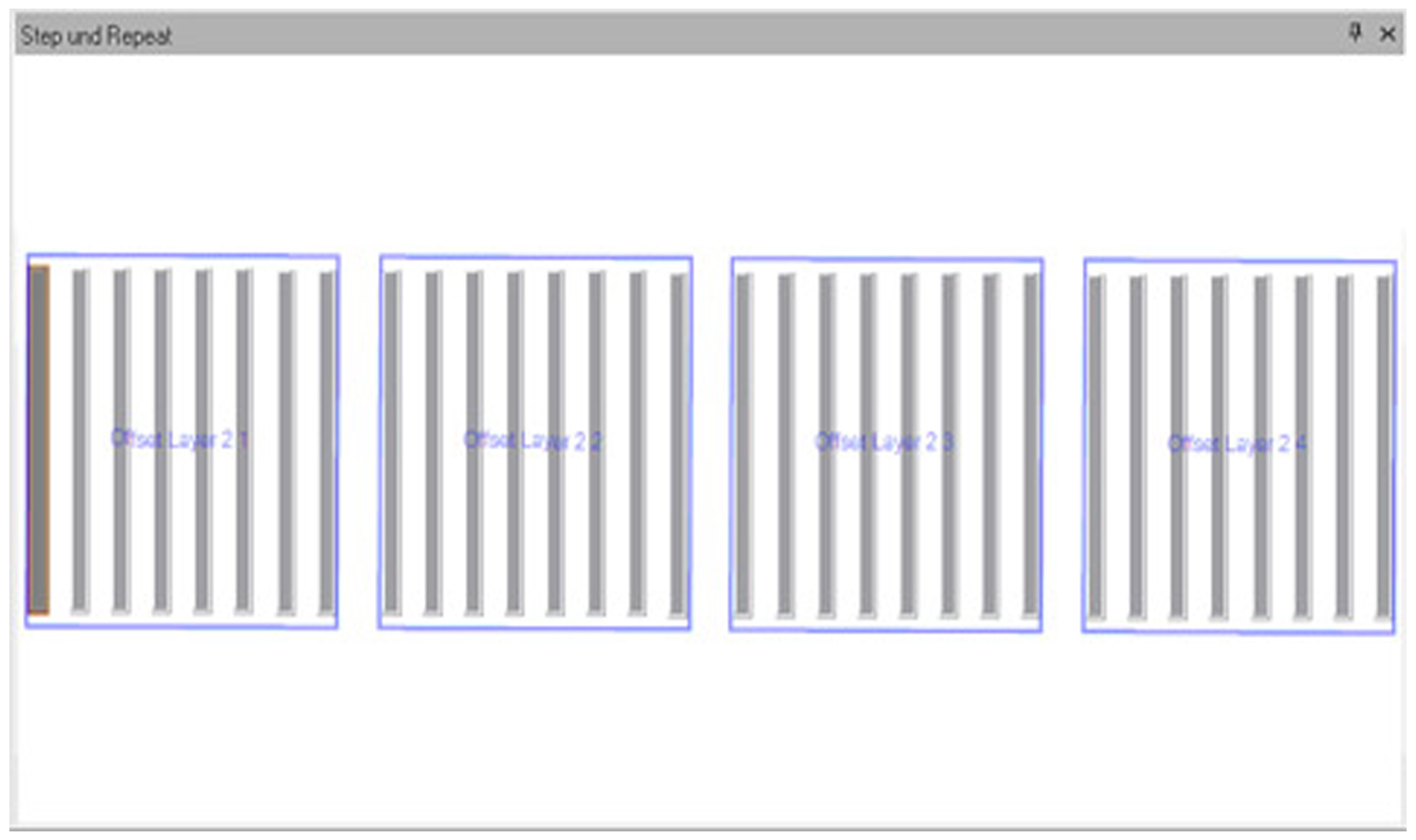

STEP AND REPEAT STEP AND REPEAT
  • Easy program setup using step and repeat
  • Designer for multiple levels
  • Activate / deactivate individual offsets

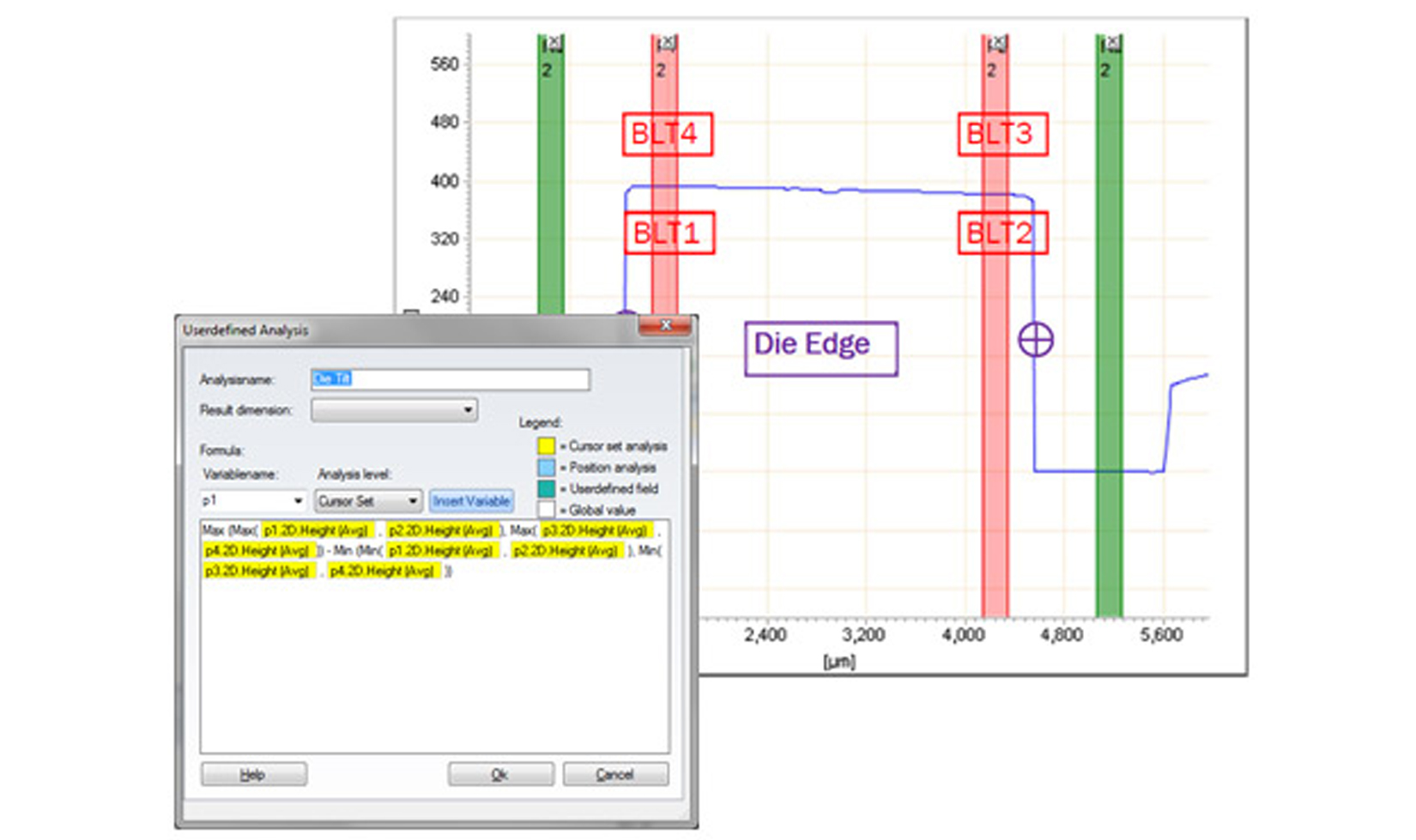

VIRTUAL TASK VIRTUAL TASK
  • Use virtual task to link existing results
  • Create custom design analysis
  • Easy to use mathematical editor function
USER FIELDS USER FIELDS
  • User field entries before or after program start or at defined conditions
  • Accepts bar code or data matrix entries
  • Automatic program search
  • Filter SPC data based on user fields
  • Data traceability
  • Enter numeric values for calculations in virtual tasks

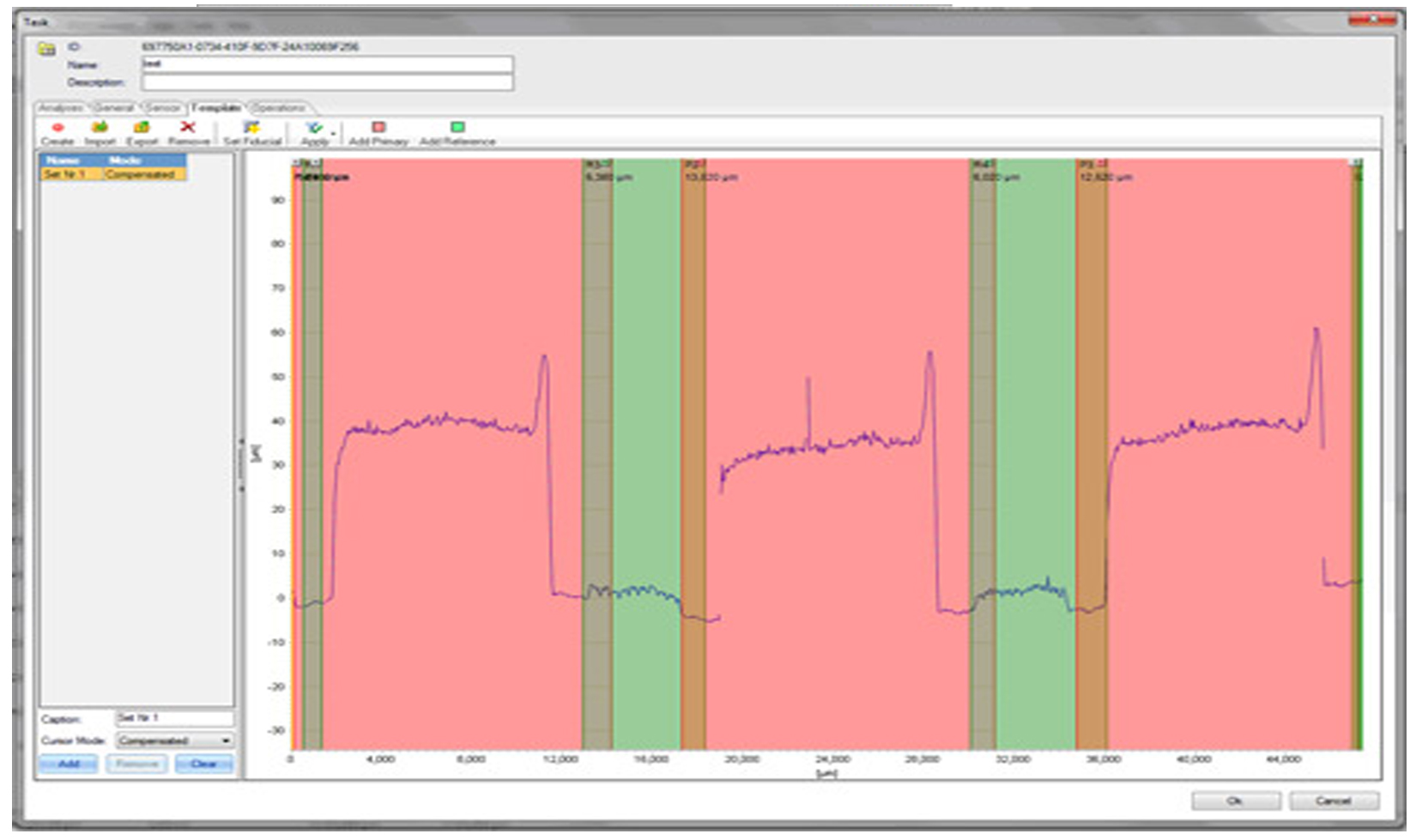

2D PROFILE TASK 2D PROFILE TASK
  • Define analysis and scan setting
  • Save task to database and update from database
  • 2D edge detection with or without template
3D RASTER TASK 3D RASTER TASK

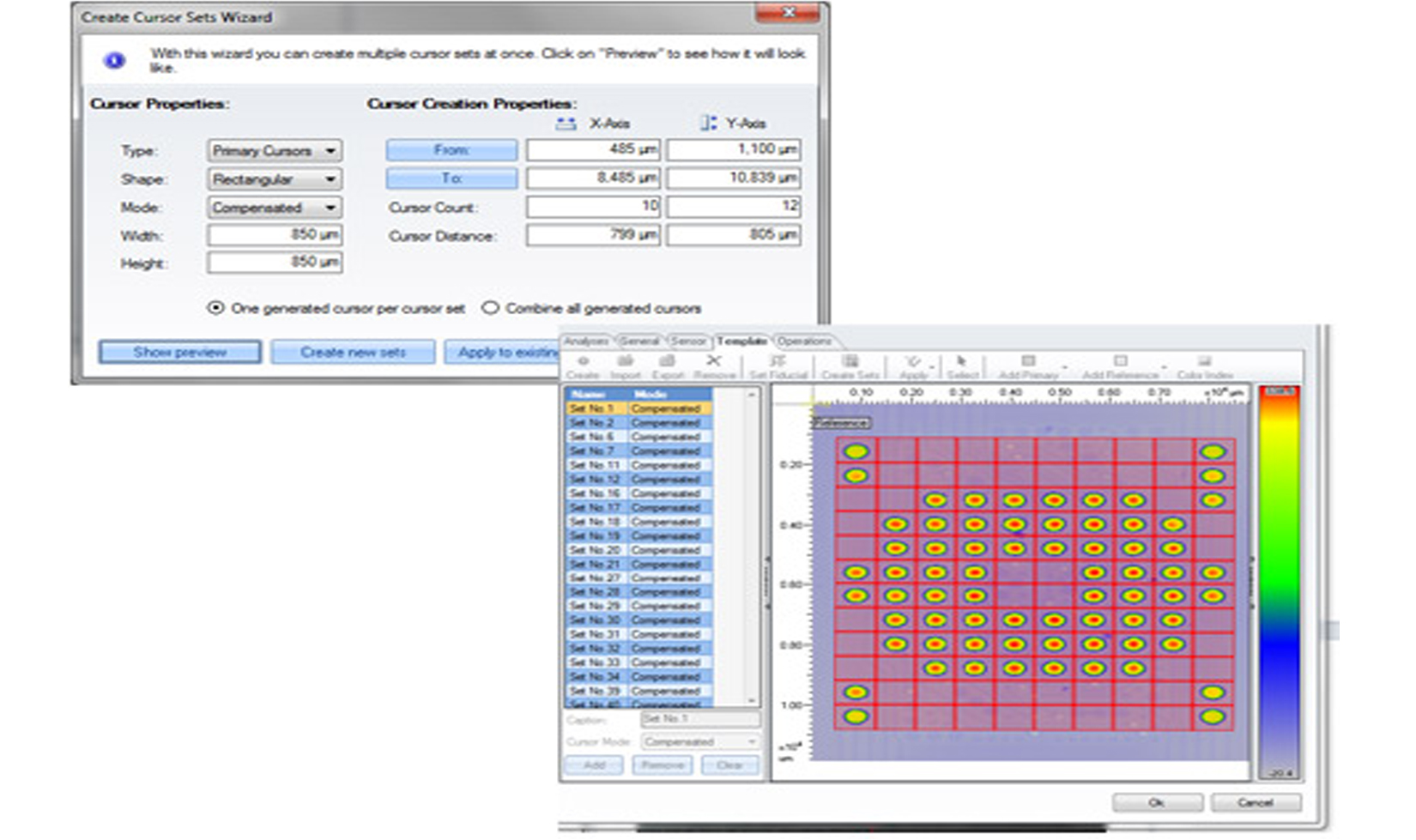

  • Multiple cursor sets per scan
  • 3D edge detection and correlation algorithm
  • Template fiducial for easy position teach-in
SPECIAL SETTINGS SPECIAL SETTINGS

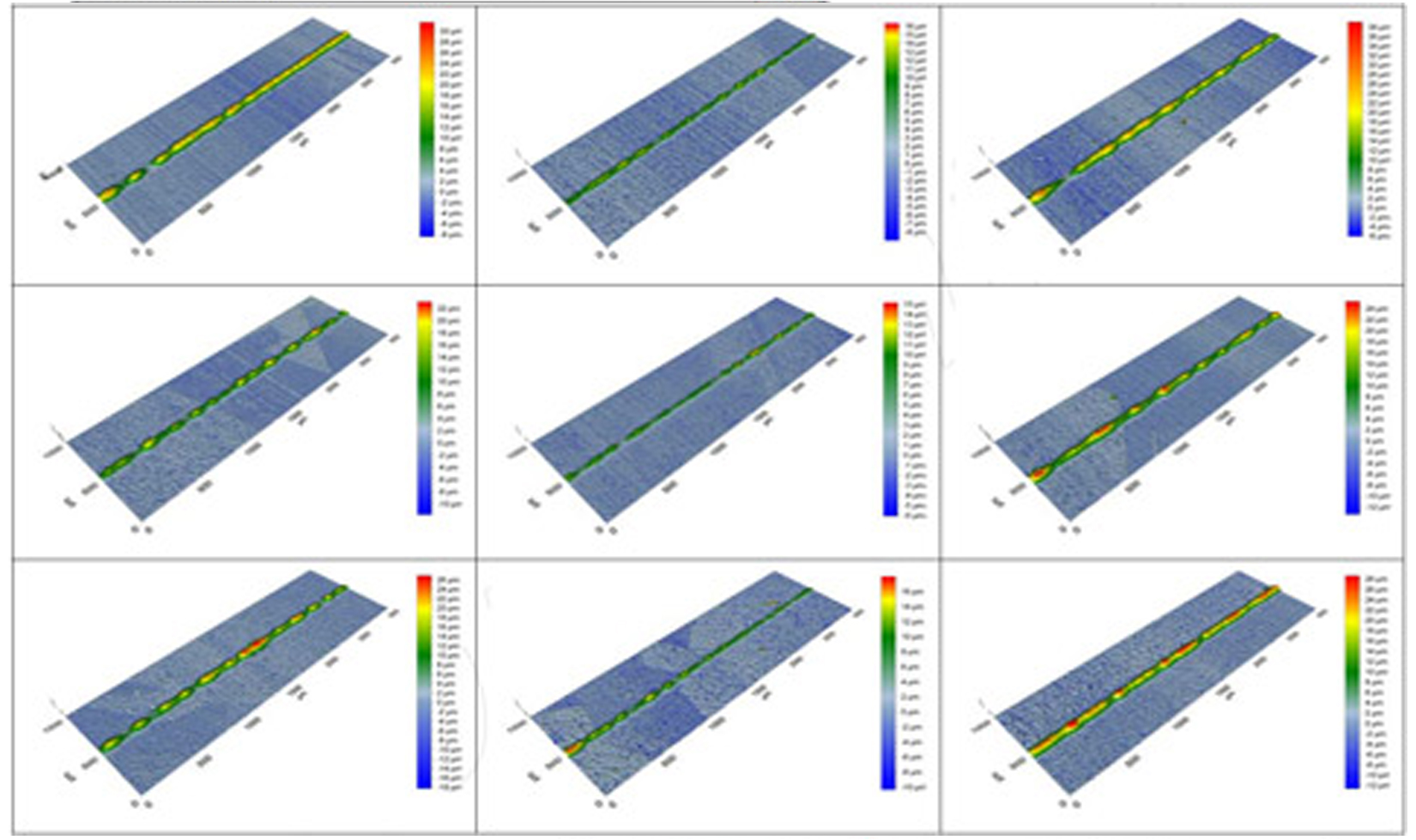

  • Output surface maps and contours automatically
  • Integrated user management
  • Enter comments in SPC data
Cybe FLATNESS MEASUREMENT FLATNESS MEASUREMENT
