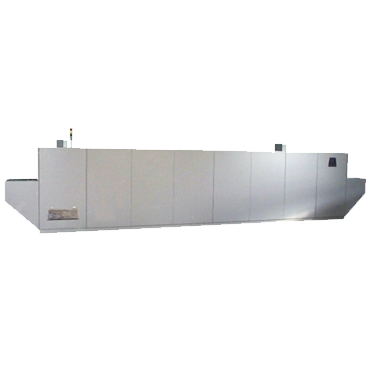

Low temperature firing furnace PTF

HYD燒成爐+高溫乾燥爐
Low temperature firing furnace PTF

PLOYMER THICKFILM CURING FURANCE

  • 200ºC thick film or chip resistor low temperature firing process.
  • Temperature controller (M type) Multi-loops smart PID controller.。

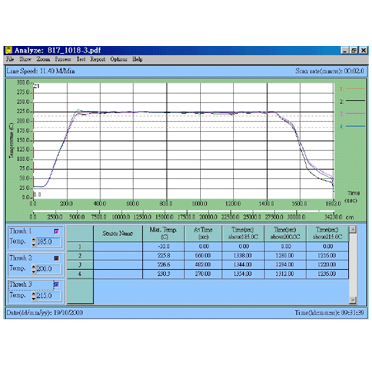

  • All-day auto monitoring and history record for future reference.
  • Each heater is paired with dual overheat protection system.
  • Low-tension design mesh belt transmission system which is free of slippage and tension to ensure longer service life.
  • During outage, power supplied by UPS, and mesh belt running in full speed to safely convey products worked in process out.
  • 【Application areas】 FPC and PCB industries.

Product Description

Other Product Description

Low temperature firing furnace PTF Low temperature firing furnace PTF
Low temperature firing furnace PTF
Low temperature firing furnace PTF
Low temperature firing furnace PTF
Specification / Model PTF-18- PTF-25-- PTF-36-
M10Z M15Z M10Z M19Z
Overall Dimension(mm)(approx.) 5275(L)
1000(W)
1400(H)
6900(L)
1000(W)
1400(H)
5275(L)
1200(W)
1400(H)
6900(L)
1200(W)
1400(H)
8050(L)
1500(W)
1400(H)
Power Rated(Input:220V,3P,60Hz or 380 V,3P,4Wires) 28KVA 39KVA 39KVA 49KVA 69KVA 110KVA
Number of Heating Zone 10 15 10 15 19
Width of mesh belt(mm) 455 635 914
Max.Process Height(mm) 25 25 25
Max.Speed of Transportation(cm/min) 23.5 32 23.5 32 34
Temperature Range Of Set point(℃) Ambient - 450℃
