Therm-tracker

Therm-tracker

Therm-tracker
Therm-tracker

PRO-600-SERIES、PRO-1000-SERIES

  • Easy to carry therm-tracker system that records and draws data graphs of a variety of thermal processes.
  • E.g., Analysis of preheat and molten solder temperature of SMT reflow oven and wave solder oven, and curing, firing, sintering, brazing of epoxy resin-based substrates.
  • Providing 4-, 6- or 8-point temperature measurement ranging -100–+1350 with 1C tolerance and showing the real-time measurement that can be read directly from connected computer.
  • Analysis software reads the molten solder time, maximum temperature and time, slope analysis and fabrication profile based on set criteria. All kinds of SMD flow process can be easily achieved.
  • Accommodating lead-free assembly.
  • 【Application areas】 FPC and PCB industries.

Product Description

Other Product Description

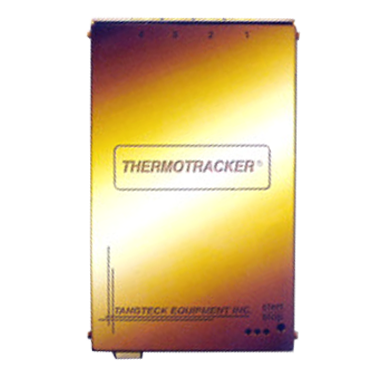

Therm-tracker Therm-tracker

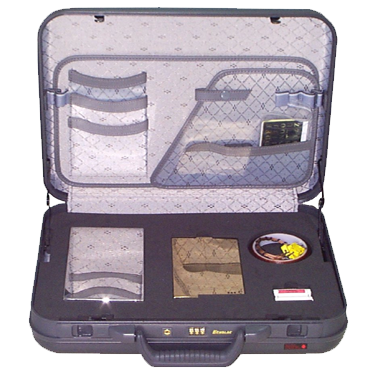

PRO-600-SERIES PRO-600-SERIES

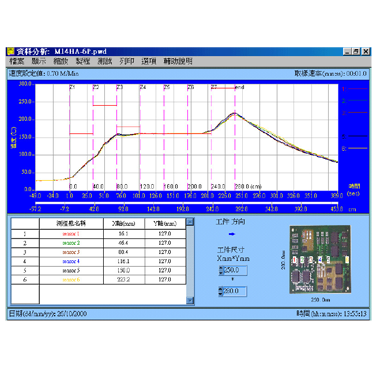

PRO-600-SERIES data analysis PRO-600-SERIES data analysis

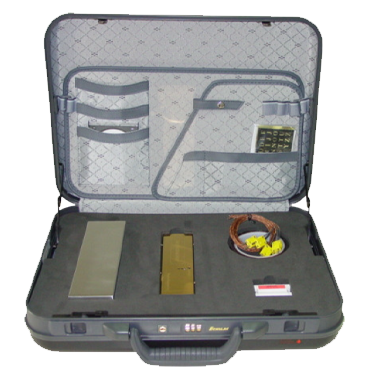

PRO-1000-SERIES PRO-1000-SERIES
PRO-1000-SERIES PRO-1000-SERIES

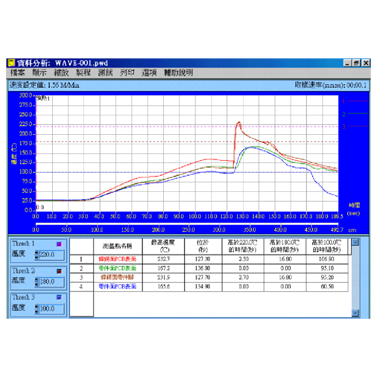

PRO-1000-SERIES data analysis PRO-1000-SERIES data analysis
Model No PRO-1000 PRO-600
4P 6P 8P 4P 6P 8P
Size(LxWxH)(mm) 【4P,6P】173x104x16
【8P】173x104x18
【4P,6P】187x52x15
【8P】187x68x15
Insulation box size (LxWxH)(mm) 【4P,6P】204x115x25 or 30
【8P】204x115x30
【4P,6P】220x64x25 or 30
【8P】220x80x25 or 30
Overheat protection Automatic shutdown when internal temperature over 85°C Automatic shutdown over 105°C
Measurement range 0-1000 ℃ 0-600 ℃
Accuracy ±1℃ ±0.5℃
Resolution 0.5℃ 0.2℃
Power supply 6V(AAA) battery pack, temperature tolerance 90°C 6V(AAAA)x4, temperature tolerance 90°C
Thermocouple K TYPE
Memory 4000 data sets
Sampling speed 0.1 sec. to 1 hour set by software
Communication RS-232
Battery life Based on sampling speed, 200 continuous operating hours under 0.1 sec sampling speed.
Software Chinese/English, featuring analytical function
