FPC Industry / FR4 substrate trimmer

FR4 載板切割機
FR4 substrate trimmer

Pushing the limit of traditional routers

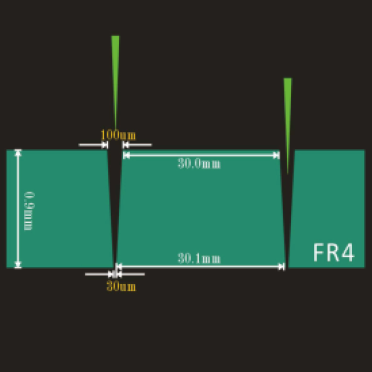

  • Innovative specialized cutting technique with minimal carbonization on surface.
  • - Extremely thin line width, thickness up to 2mm.
  • - Increasing board outer side utilization rate.
  • - Free of stress and electrostatic effect and eliminating cleaning to shorten process and thus reducing risk.
  • - Adjustable to board size, automating production (SMT in-line)
  • - Dual stage design to eliminate loading lead time.
  • - 2D Barcode can be made while de-paneling.
  • - First choice for vehicle-to-everything.
  • - Optional production profiling function.
  • - Passed the strict automotive qualification.
  • 【Application】 High quality cutting, low dust, low contamination, realizing minimal carbonization

Product processing instruction

Other Product Description

V-cut V-cut
V-cut V-cut

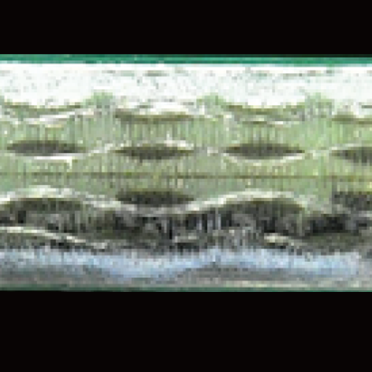

Cut surface HAZ Cut surface HAZ

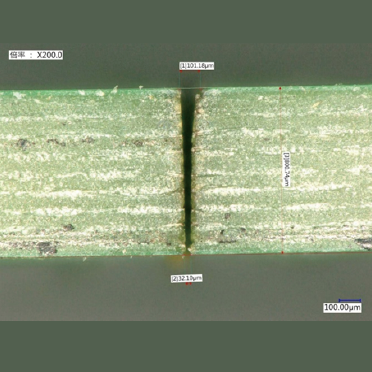

Cut surface HAZ Cut surface HAZ

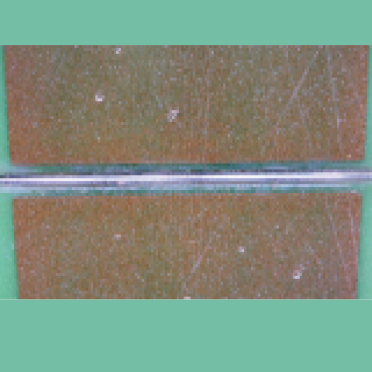

Cut surface HAZ Cut surface HAZ

Technical specification

Detailed related technical specifications.

Itemss Specification
System Includes: Light source, stage control system, computer, etc. Dimension 2100mm(W)X1880mm(L)X2050mm(H)(stacklight not included)
Weight 2000kg
Stage XY-axis Stage table size 650mmX650mm (customizable)
Processing speed 50mm/sec~400mm/sec
Light source Laser wavelength UV 355nm Green 532
Power 30W 40W
