PCB/FPC Industry
FPC Industry / Panel Laser Marking Machine
Panel Laser Marking Machine
Mix and match among CO2/IR/GREEN/UV
- Depending on materials, several laser types may be chosen from.
- Replacing weakness on traditional printing.
- Barcode file can be imported from front-end process or from server.
- Import file is applicable for 2D/Badlnk/Unicode.
- dxf file can be imported and edited on the user interface in real time.
- Rigid-Flex material design for loading and unloading.
- Switching between flexible board and rigid board.
- Parameter set importing, automatic switch of machining mode.
- 【Application】 Ｍultifunctional equipment achieving multitasking, widely employed in the industry.
Product Description
Other Product Description

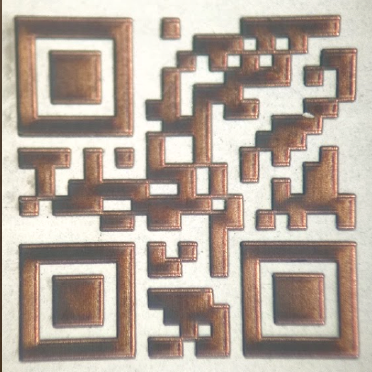

2D Barcode marking

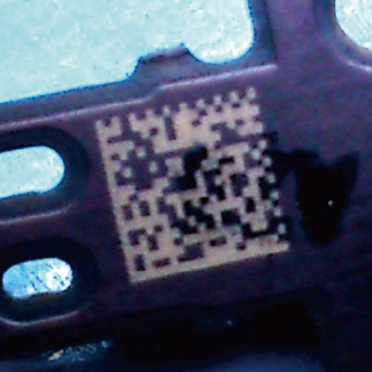

2D Barcode marking

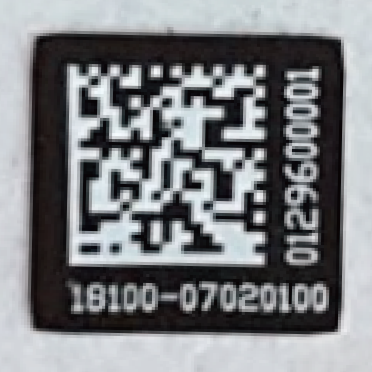

2D Barcode marking

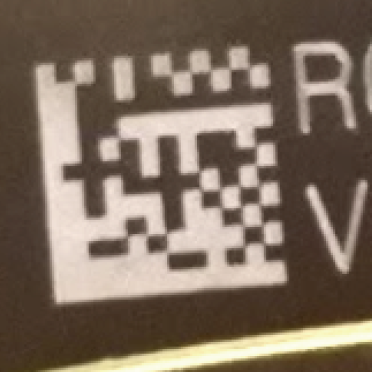

2D Barcode marking

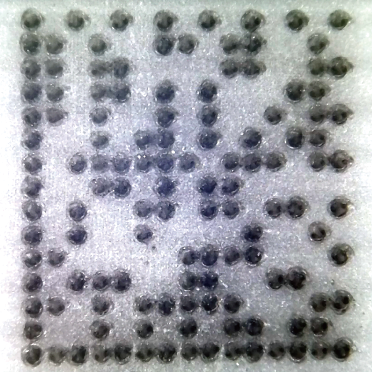

2D Barcode marking

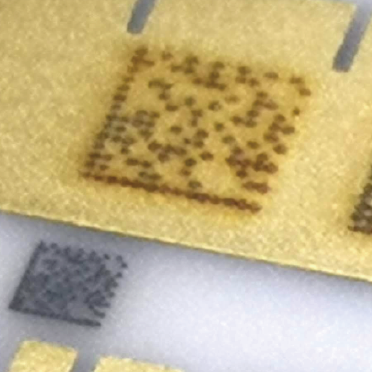

2D Barcode marking
Technical specification
Detailed related technical specifications.
| Items | Specification | ||
|---|---|---|---|
| System includes: | Light source, stage control system, computer, etc. | Dimension | 1600mm(W)X1600mm(L)X1600mm(H) (loading and unloading system not included) |
| Weight | 2000 kg | ||
| Stage | XY-axis | Stage table size | 500mmX600mm |
| Processing speed | 50mm/sec~400mm/sec | ||
| Light source | Laser wavelength | UV 355nm/Green 532nm/IR 1064nm/CO2 10.6um | |
| Power | 10W~50W | ||
