Non-contact Profilometer

Germany Cyber Technologies CTR 200

CTR 200
CTR 200
  • Accurate and fast 2D/3D non-contact profiling system[measuring]D(x,y,z) 2D (y,z or x,z), Height, Height (Avg), Length, Volume, Angle, Angle (Planar), Center, Roughness, Radius (Avg, Max, RMS, Rz), Roughness (Avg, Max,RMS, Rz).
  • Simple and easy-to-use user interface.
  • Diameter for measurement: 5mm to 200mm.
  • Precise analysis and automation software.
  • 【Applicable fields】 Thickness measurement of thick film printing, hybrid circuits, BGA, TAB and FLIP CHIP and measurement of round parts.
  • 【Application areas】 Semiconductor industry packaging and testing, optoelectronic industry, PCBs fabrication, SMT industry, hybrid circuits, passive components.

Product Description

Other Product Description

CTR 200 CTR 200

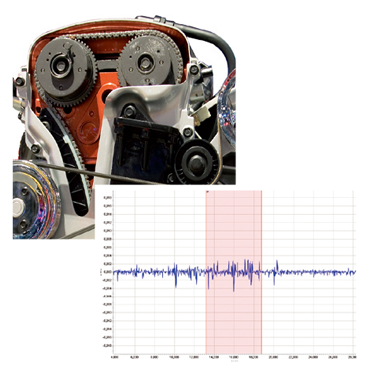

Roughness measurement on an engine part Roughness measurement on an engine part

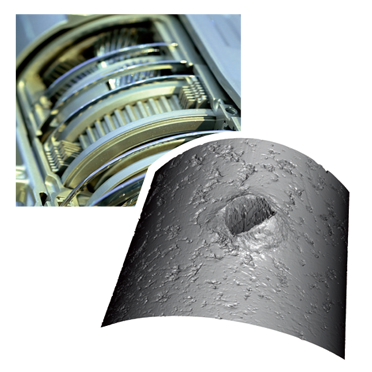

Defect on a transmission shaft Defect on a transmission shaft

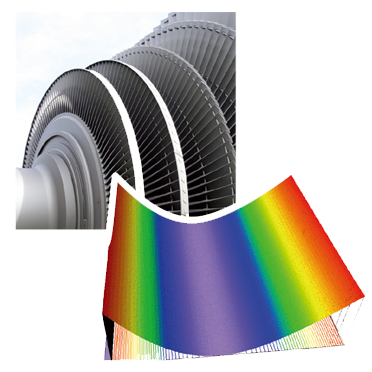

Diameter of a turbine part Diameter of a turbine part
